Ricoh D017 - Timing Charts

Electrical Components
SM 55 D372
500-Sheet
Finisher
D372
2.7.3 TIMING CHARTS

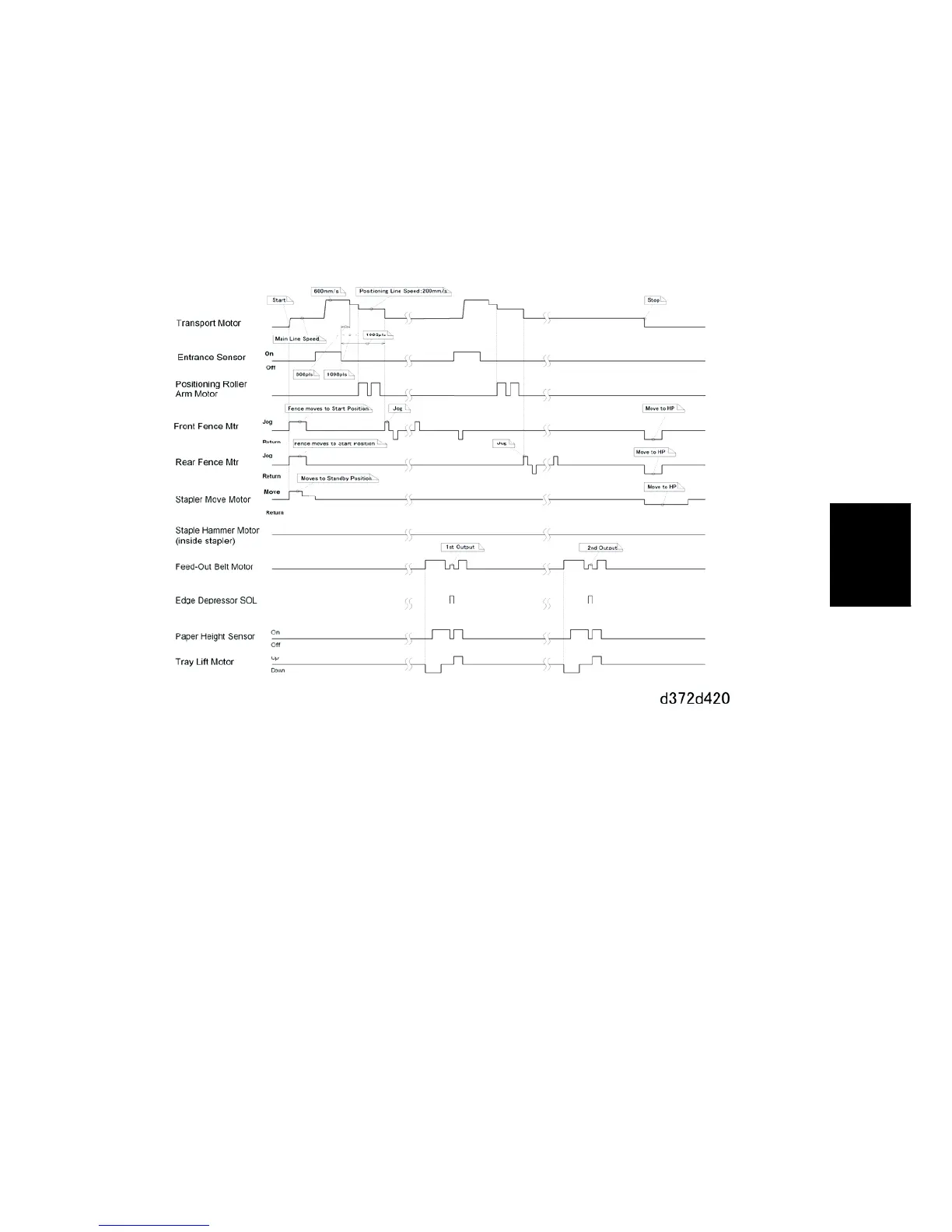

The first flowchart below is the operational timing chart for shift mode, the second chart is
for stapling mode.
Shift Mode
