Ricoh D017 - Exposure Lamp

Scanner Unit
D017/D018/D019/D020/D084/D085 4-7 SM
Replacement
and
Adjustment
4.3.3 EXPOSURE LAMP

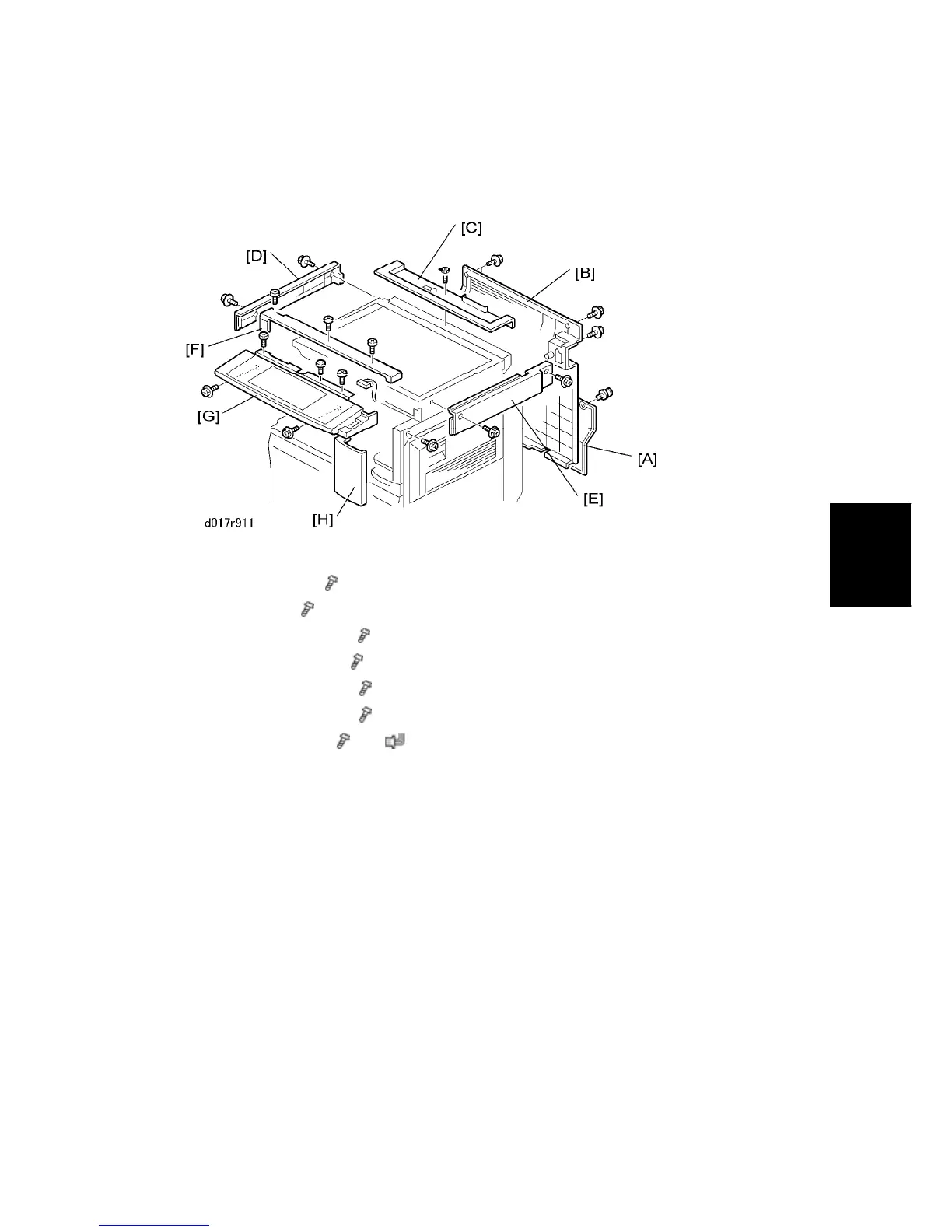

1. Remove:
[A] Harness cover (
x1)
[B] Rear cover (
x4)
[C] Scanner rear cover (
x1)
[D] Scanner left cover (
x2)
[E] Scanner right cover (
x2)
[F] Scanner front cover (
x3)
[G] Operation panel (
x5, x1)
[H] Support cover (Tab x1)
