Installation
D361/D510 10 SM
Fax Installation

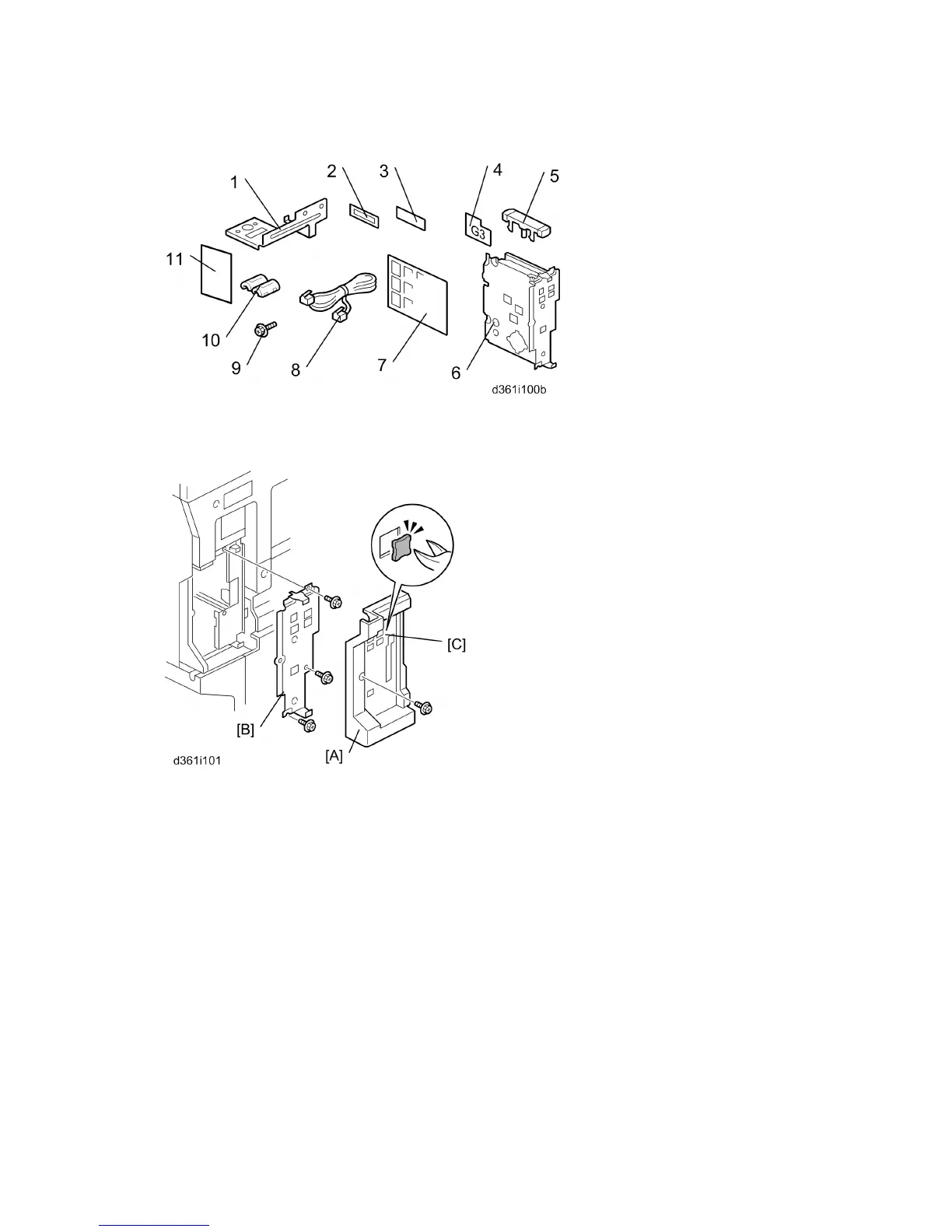

1. Remove:
[A] Application (plastic) cover ( x1)
[B] Left cover plate ( x1)
[C] Knockouts
LINE 1 for Fax Unit
If one G3 Unit will be installed, remove the knockout for LINE 1 and LINE 2.
If two G3 Units will be installed, remove the knockouts for both LINE 1, LINE 2,
and LINE 3
To Next Page
