Ricoh D017 - Exposure Lamp Stabilizer; When Reassembling

Scanner Unit
D017/D018/D019/D020/D084/D085 4-13 SM
Replacement
and
Adjustment
When reassembling
Adjust the following SP modes after you replace the sensor board unit:
 SP4–008 (Sub Scan Mag)
 SP4–010 (Sub Mag Reg.)
 SP4–011 (Main Scan Reg)
 SP4–688 (DF: Density Adjustment). This SP code adjusts the density level if the ID of
outputs made in the DF and Platen mode is different.
For more details, see Image Adjustment: Scanning.
4.3.6 EXPOSURE LAMP STABILIZER
1. Remove:
 Rear cover (
p.4-7 "Exposure Lamp")

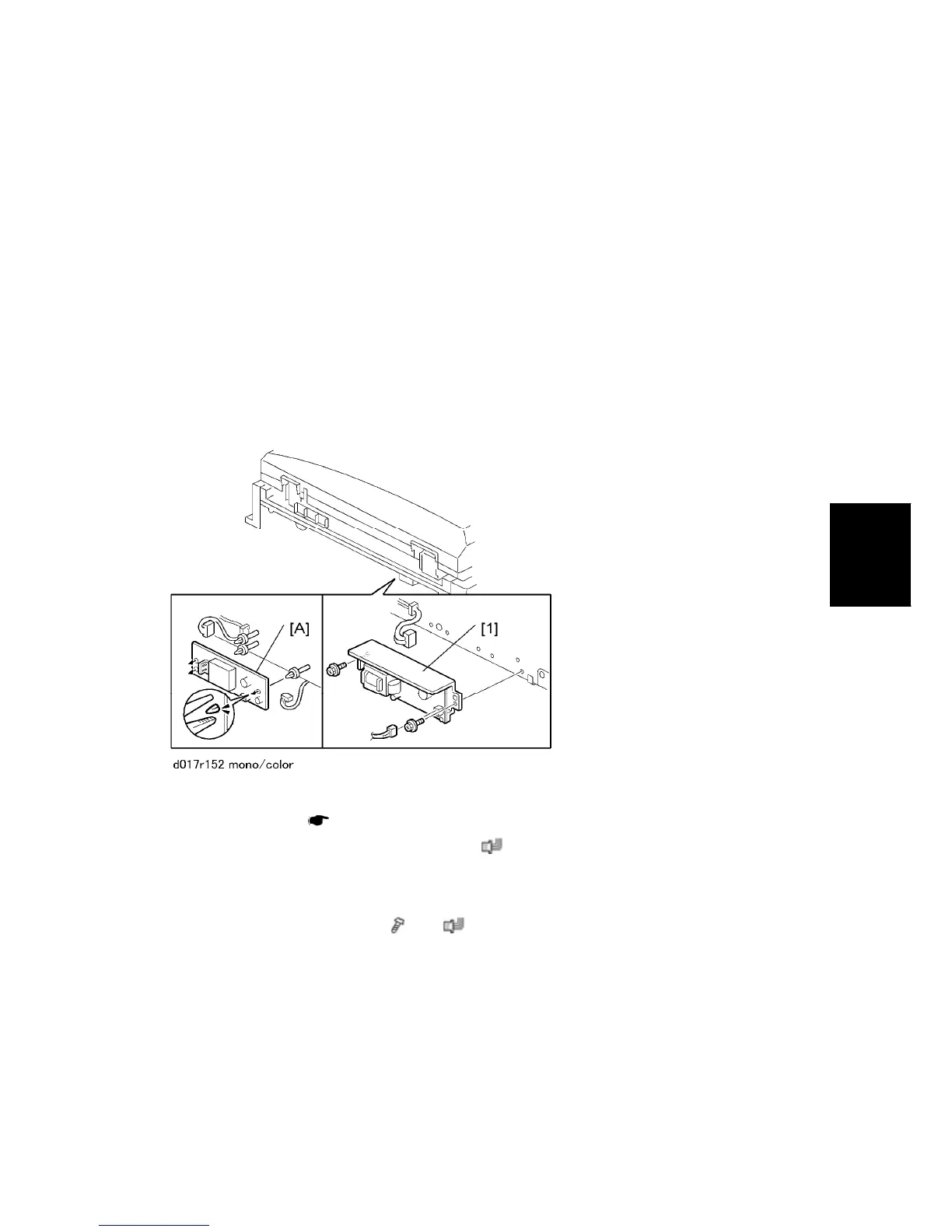

Exposure lamp stabilizer [A] (Standoff x1,
x 2) (Monochrome Scanner Unit
(D017/D019))
-or-
Exposure lamp stabilizer [1] (
x 2, x 2) (Color Scanner Unit
(D018/D020/D084/D085))
