Key Counter (B452)
D017/D018/D019/D020/D084/D085 2-67 SM
Installation

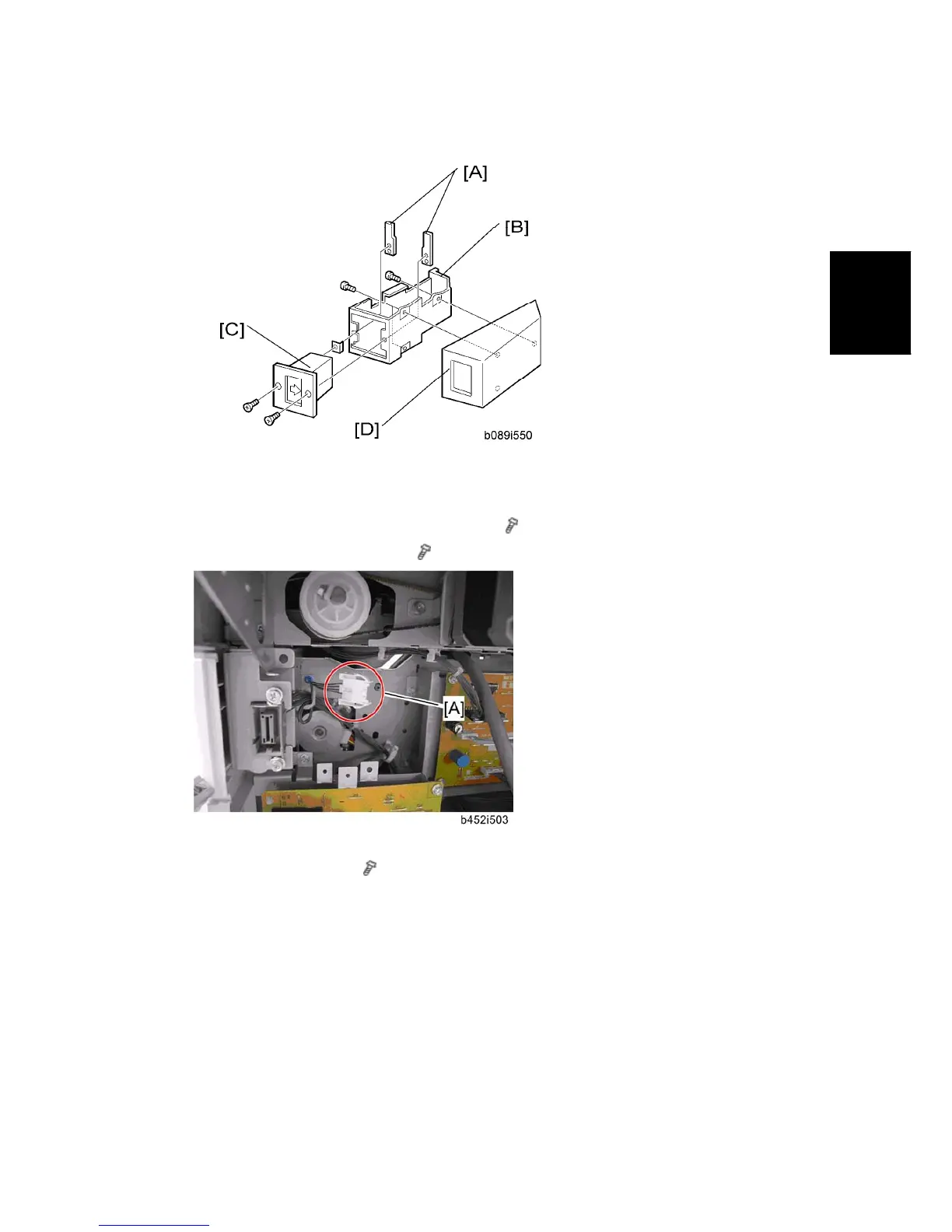

3. Hold the key counter plate nuts [A] on the inside of the key counter bracket [B] and
insert the key counter holder [C].
4. Secure the key counter holder to the bracket (
x 2).
5. Install the key counter cover [D] (
x 3).
6. Connect the harness of the key counter to the connector [A] inside the machine.
7. Reattach the rear cover (
x 5).
