2.21 MECHANICAL COUNTER
This counter is only used for NA models.
2.21.1 ACCESSORY CHECK
No. Description Q’ty
1 Mechanical counter 1
2.21.2 INSTALLATION
 Unplug the machine power cord before starting the following procedure.

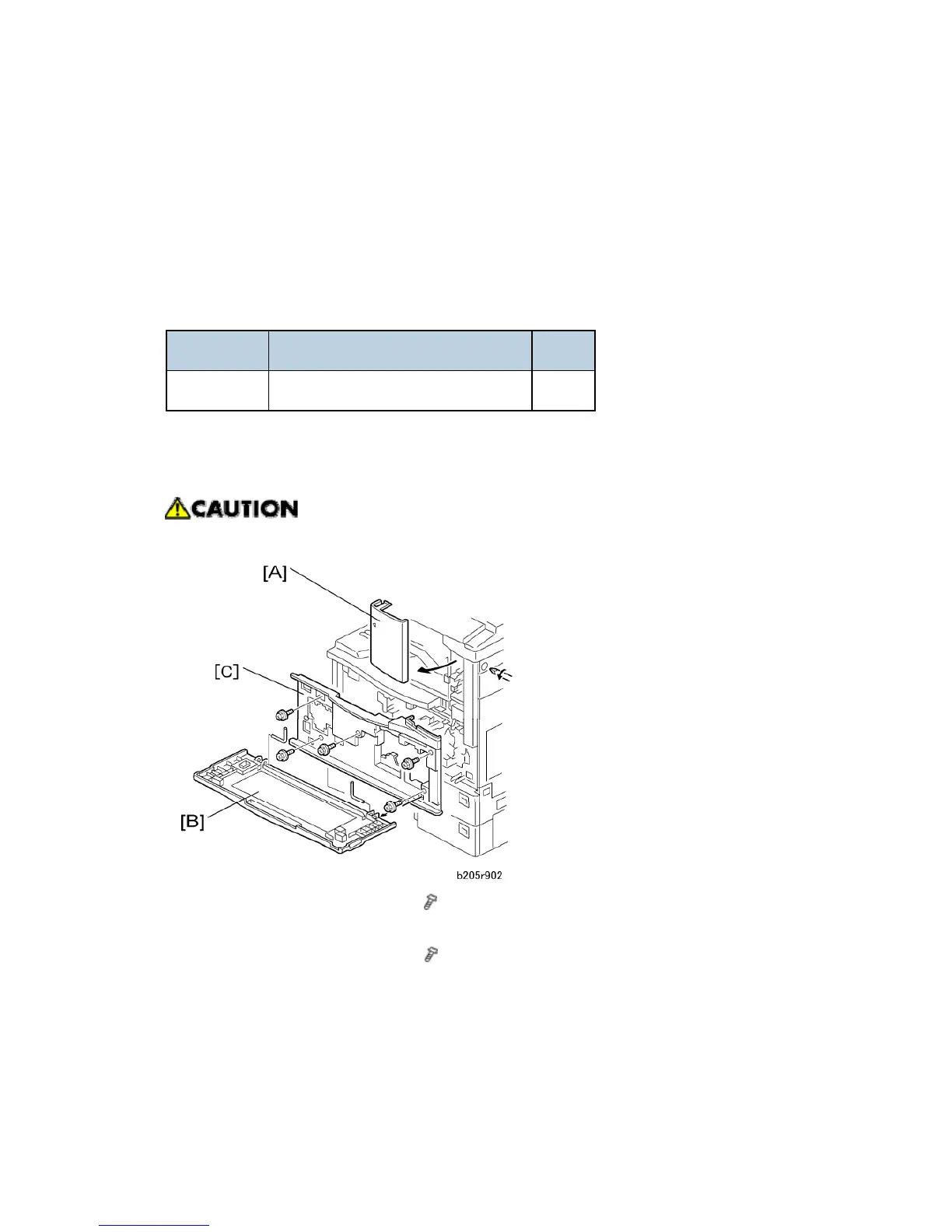

1. Remove the front right cover [A]. (
x 1, Hook x 1)
2. Remove the front cover [B] (L-brackets x2).
3. Remove the front inner cover [C] (
x 5).
