Key Counter Interface Unit
D017/D018/D019/D020/D084/D085 2-87 SM
Installation

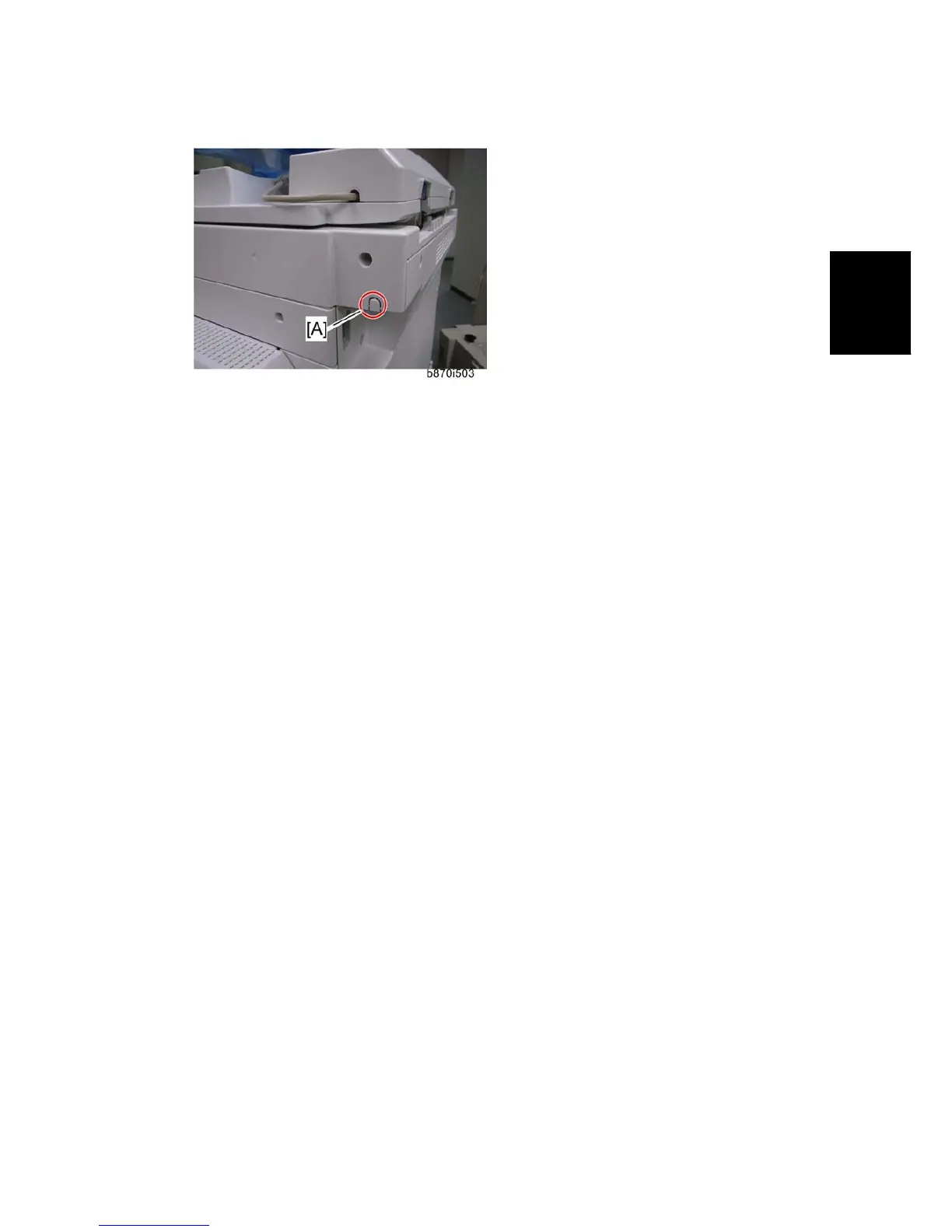

7. Cut off the part [A] of the scanner right cover.
8. Connect the harness from the counter device to "CN4" on the key counter interface
board.
9. Reassemble the machine.
