Ricoh G179 - Fusing Motor; Web Motor

Drive Area
G179 3-60 SM

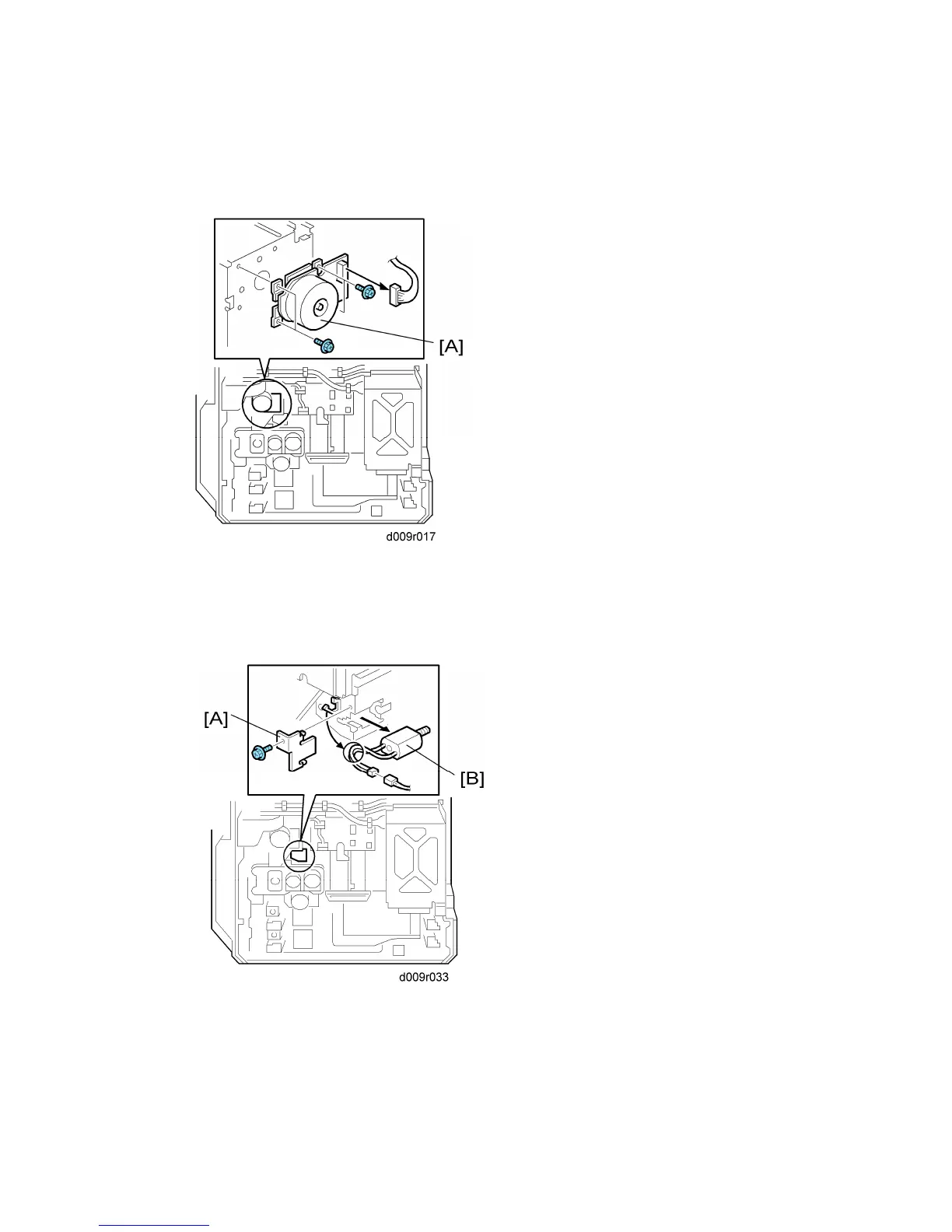

3.13.5 FUSING MOTOR
1. Rear cover ( Rear Cover)
2. Fusing motor [A] ( x 4,  x 1)
3.13.6 WEB MOTOR
1. Rear cover ( Rear Cover)
2. Bracket [A] ( x 1,  x 1)
3. Web motor [B] ( x 1, = x 1)
