STAPLER UNIT

B408 2 SM

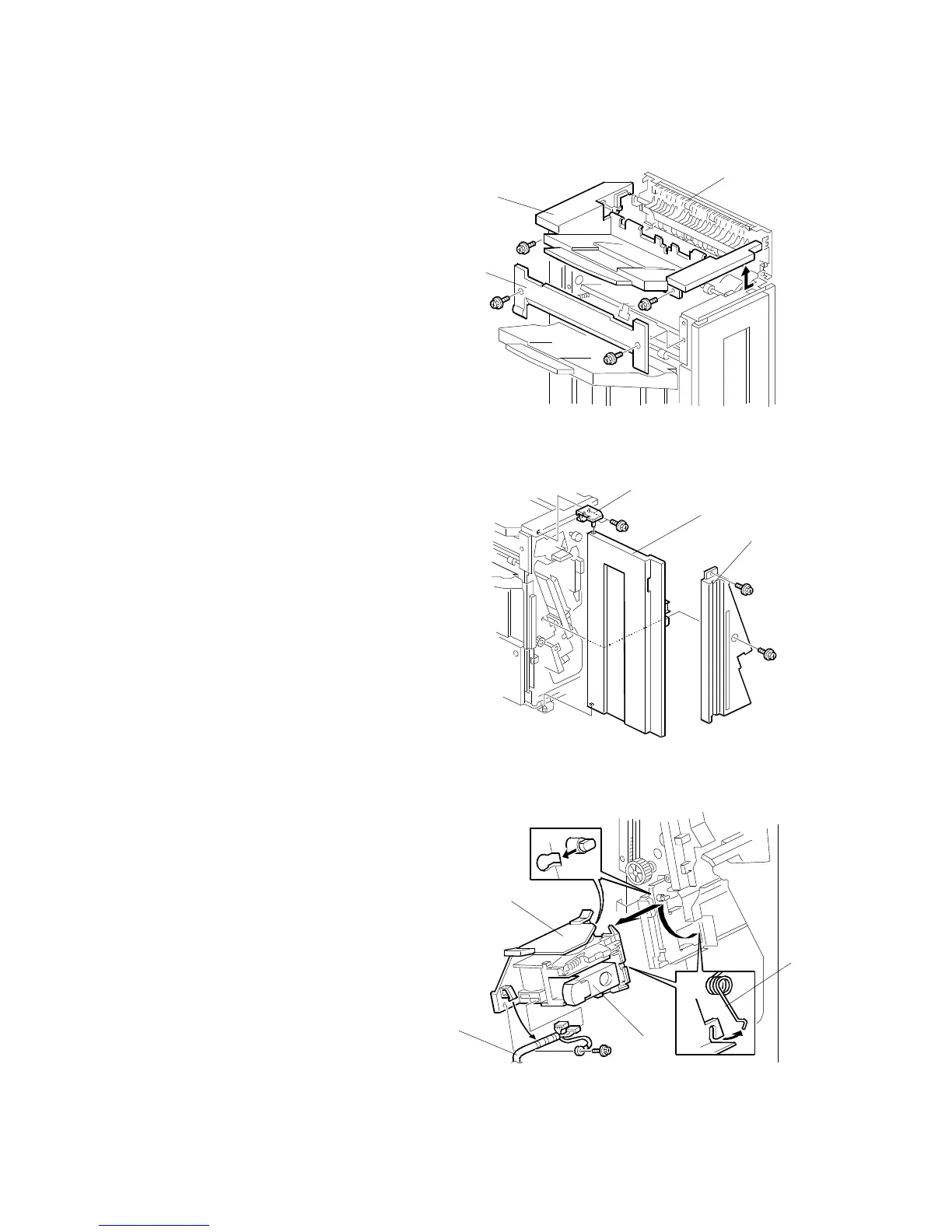

1.2 STAPLER UNIT

1. Side cover [A] (



x 2)

2. Open exit guide plate [B]

3. Upper side cover [C] (



x 2)

4. Front cover support plate [D] (



x 1)

5. Front cover [E]

6. Front inner cover [F] (



x 2)

7. Harness [G]

8. Unhook the spring [H]

9. Turn the stapler unit [I] and take it

out.

10. Bracket [J] (



x 2)

B408R102.WMF

B408R113.WMF

B408R114.WMF

[A]

[B]

[C]

[D]

[E]

[F]

[G]

[H]

[I]

[J]
