Drum Cleaning and T
oner Recycling
SM 6-31
G179
Det
ailed
Descriptions
6.8.2 TONER
RECYCLING
T

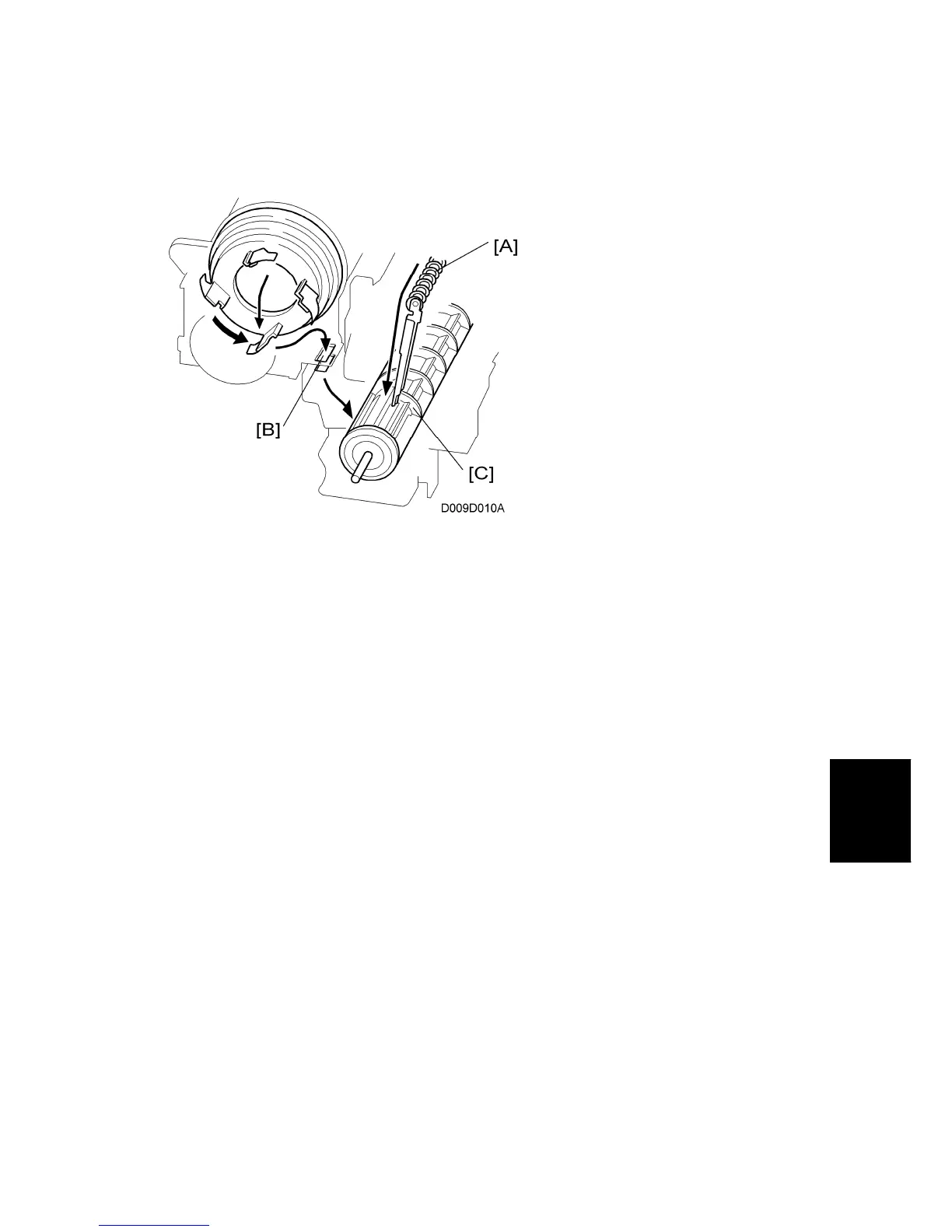

oner collected by the toner colle
ction coil [A] is transported to
the opening [B].
This toner
falls into the development unit with new toner coming from the toner bottle. The p
addle
roller [C] mixes the collected toner with the new toner
.
CÓPIA NÃO CONTROLADA
CÓPIA NÃO CONTROLADA
422
424
