Ricoh G179 - Staple Mode

Junction Gates
SM 41 B804/B805
Booklet
Finisher/
Finisher
B804/B805

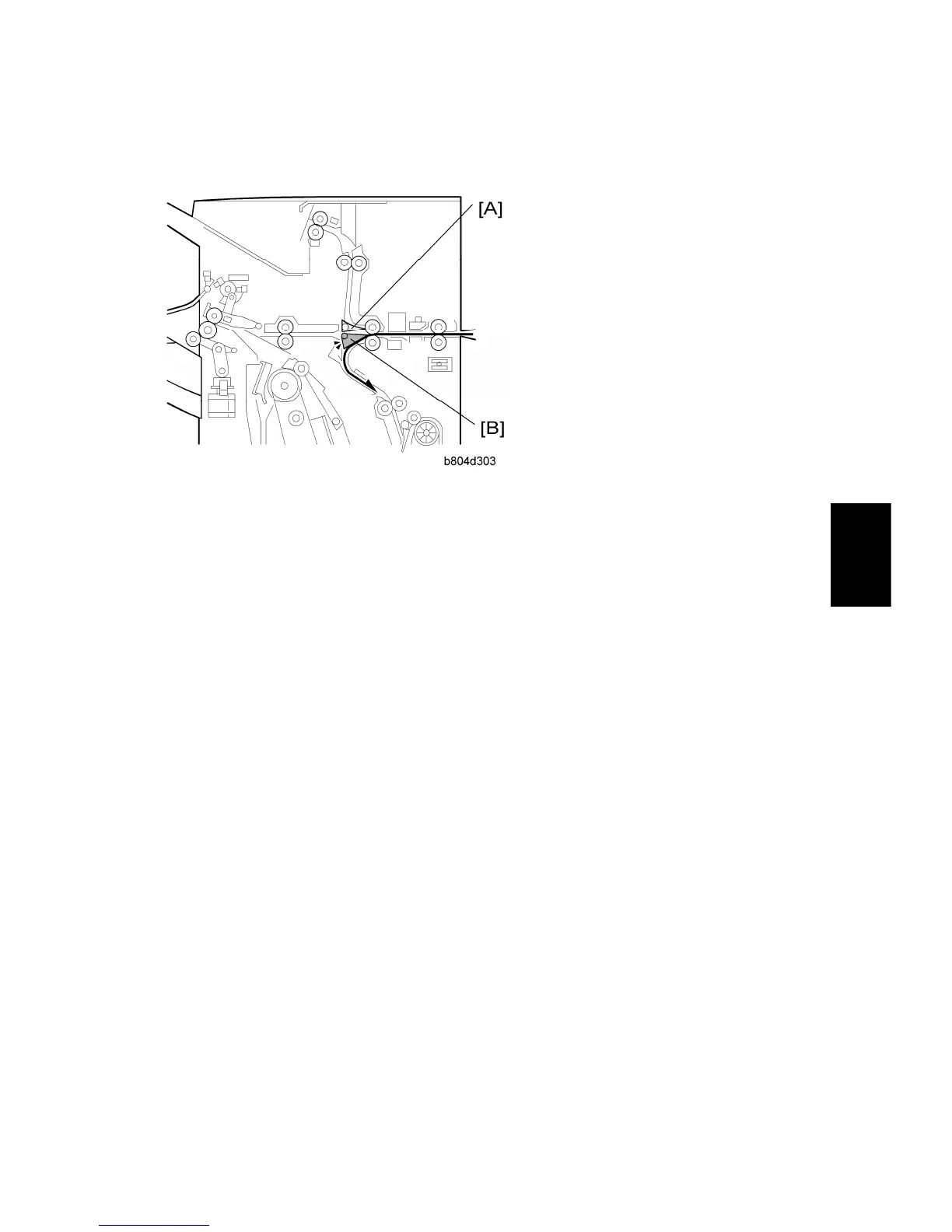

2.2.3 STAPLE MODE
Proof tray junction gate [A] remains closed. Staple tray junction gate [B] opens
The staple tray junction gate directs the paper to the staple tray below for jogging and
stapling.
