Ricoh G179 - Fold Unit

Fold Unit
B804/B805 10 SM
1.4 FOLD UNIT
1.4.1 FOLD UNIT

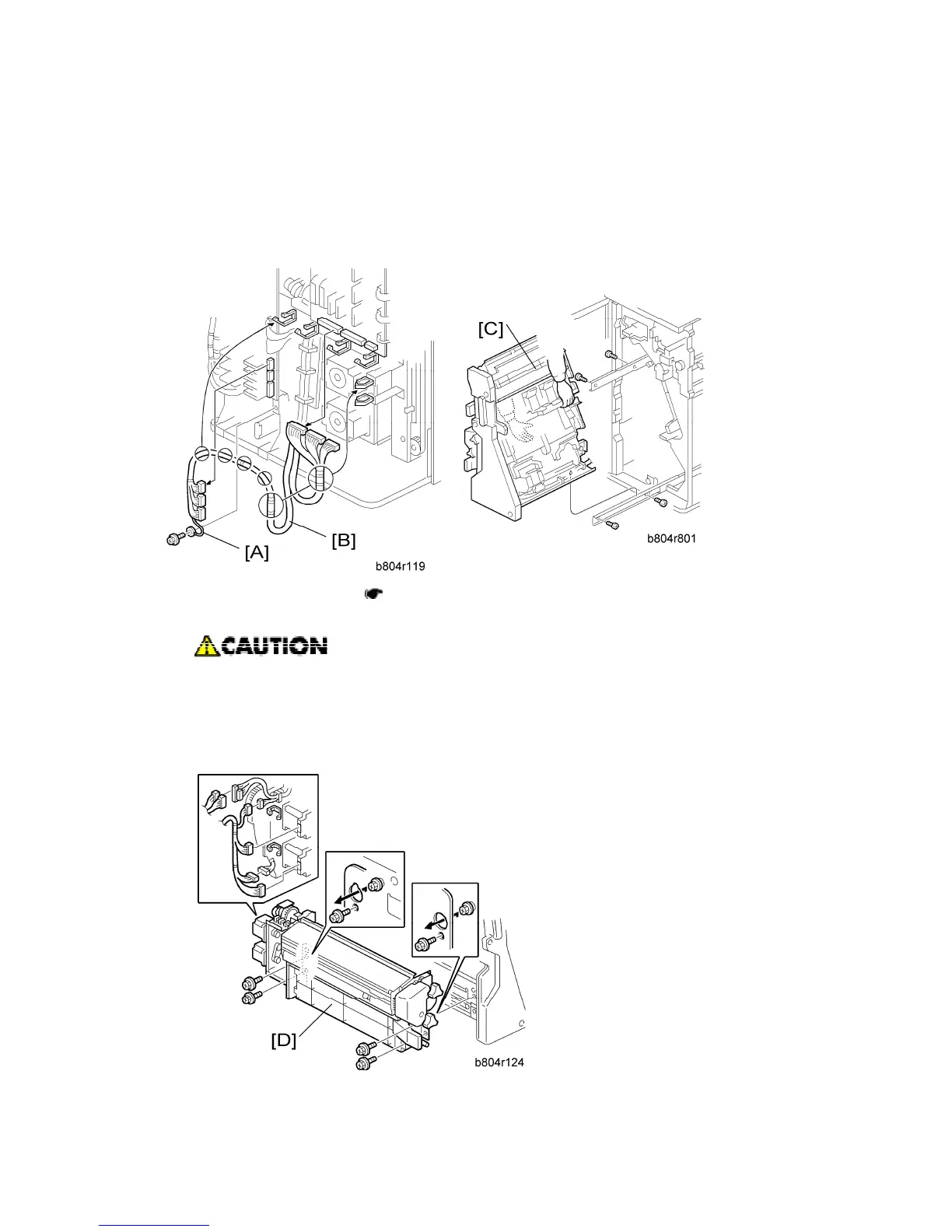

1. Remove the back cover ( 1.1.1 "Exterior Covers").
2. Open the front door.

The stapler unit is heavy.
3. Ground cable [A] (

x1)
4. Harness [B] (

x6,

x6)
5. Stapler unit [C] (

x4)
