Tray Heater
SM 1-33 G179
Installation

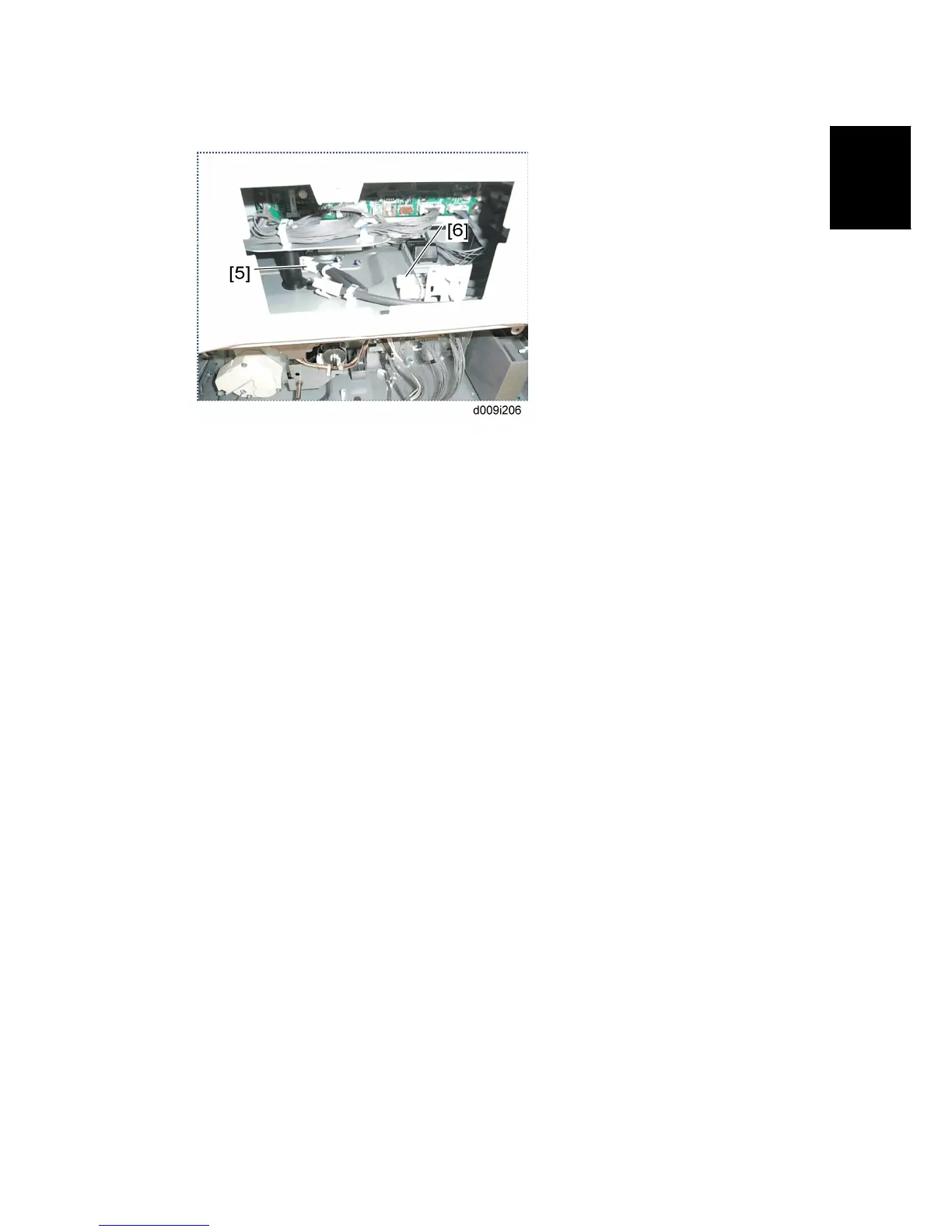

5. Release the heater relay connector [5] (= x 1).
6. Connect the heater relay connector to the connector [6] (front side) of the main frame
(= x 1).
7. Reassemble the machine.
