Ricoh MP C407 User Manual

Page Keeper Type M28 (D3DQ-17)
124

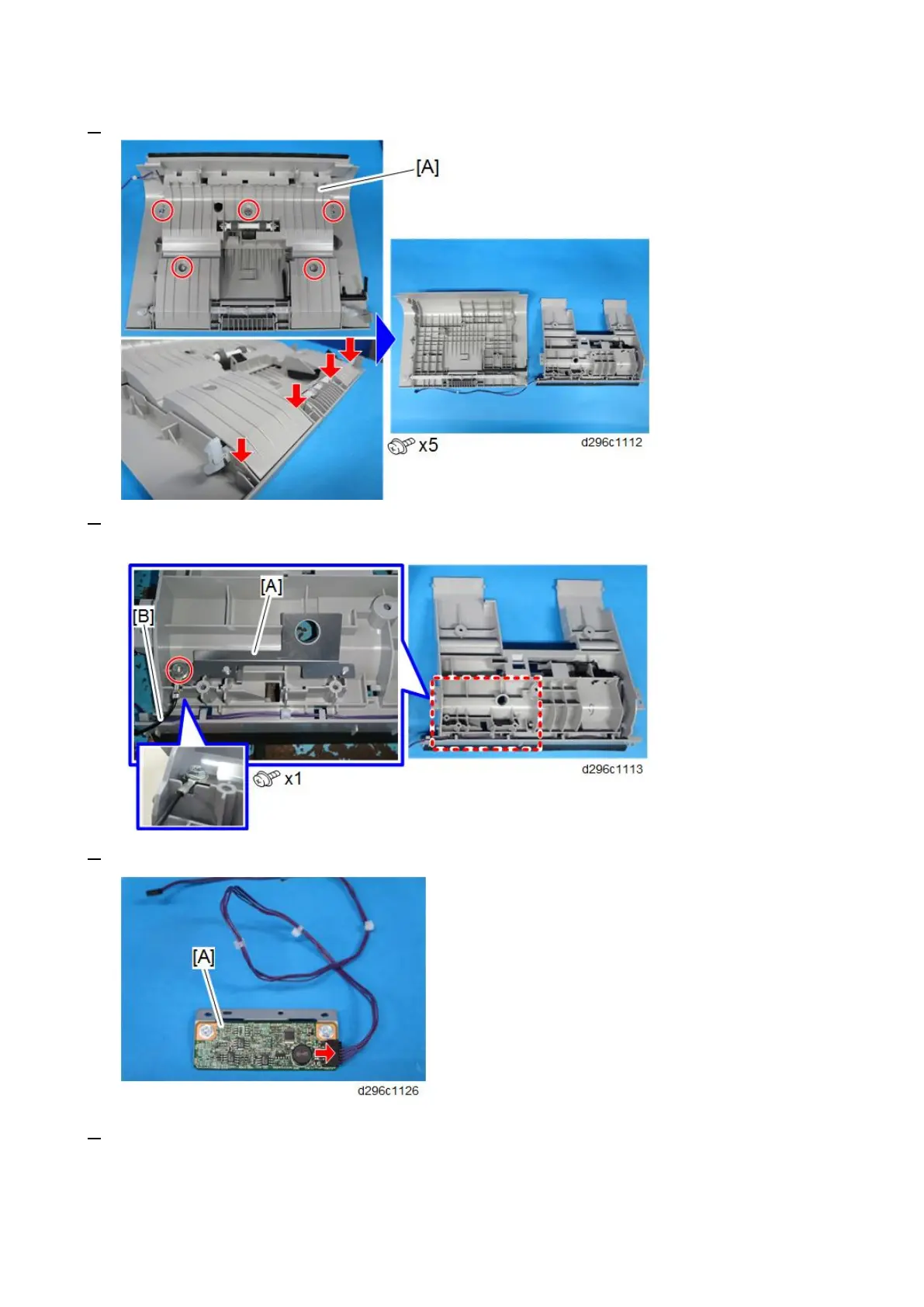

4. Remove the five screws and release the four tabs, and then remove the inner cover [A].
5. Attach the grounding plate [A] and the grounding wire [B], and insert the grounding wire in the notch.
(Tapping Screw: 3x10)
6. Connect the long harness to the double-feed sensor (receiver) [A].
7. Attach the double-feed sensor (receiver) [A]. (Tapping screw: 3x10)

Ricoh MP C407 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Speed (B/W)	42 ppm
Print Speed (Color)	42 ppm
Max Print Resolution	1200 x 1200 dpi
Duplex Printing	Yes
Monthly Duty Cycle	150, 000 pages
Paper Size	A4, A5, B5
Connectivity	USB, Ethernet, Wi-Fi
Mobile Printing	Apple AirPrint, Google Cloud Print, Mopria
Operating System Compatibility	Windows, Mac OS, Linux
