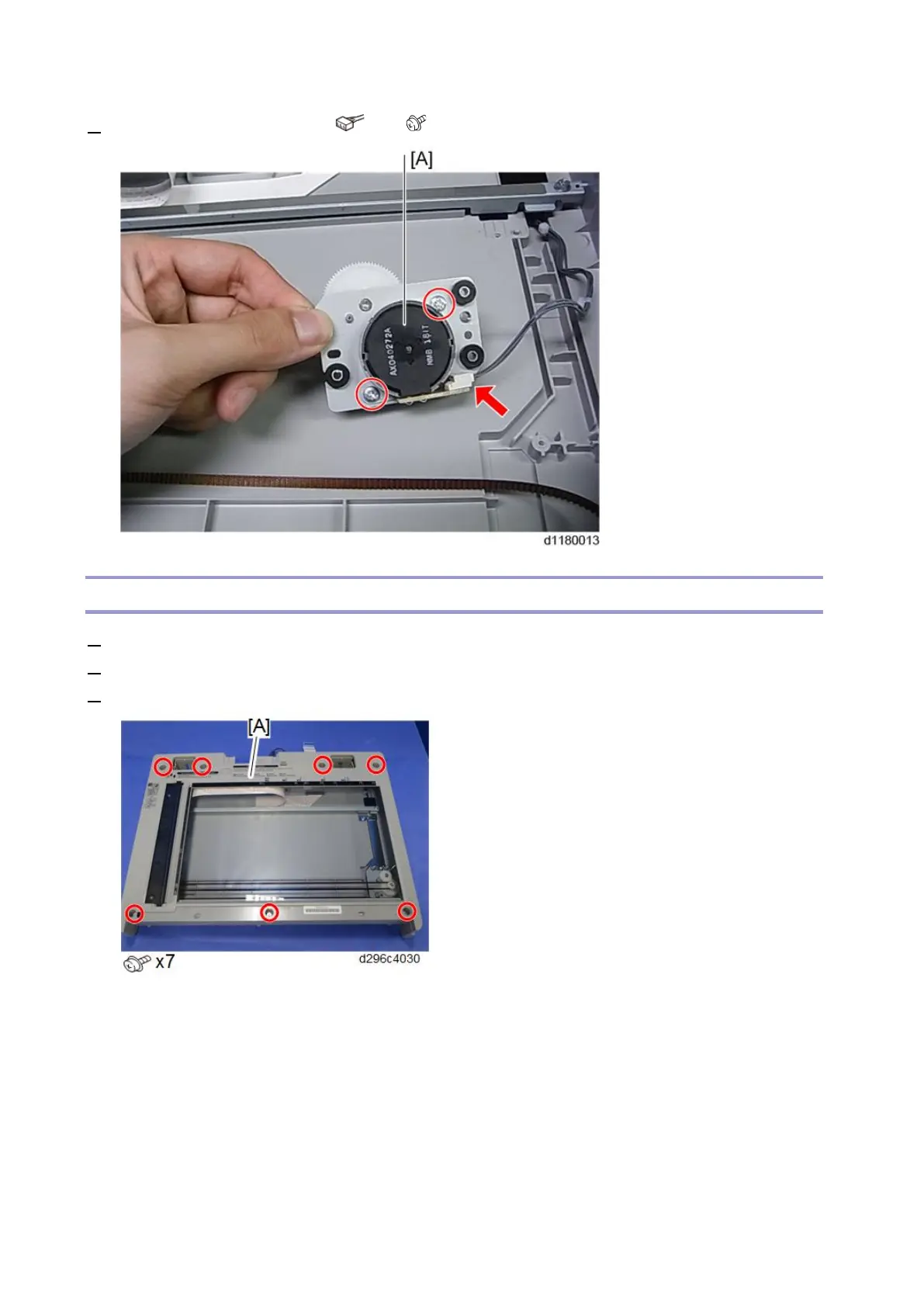

6. Remove the scanner motor [A]. ( × 1, × 2)
Scanner Carriage
1. Remove the ADF unit. (ADF Unit)
2. Remove the scanner front cover. (Scanner Front Cover)
3. Remove the scanner upper cover [A].
