Ricoh MP C407

Drive
268

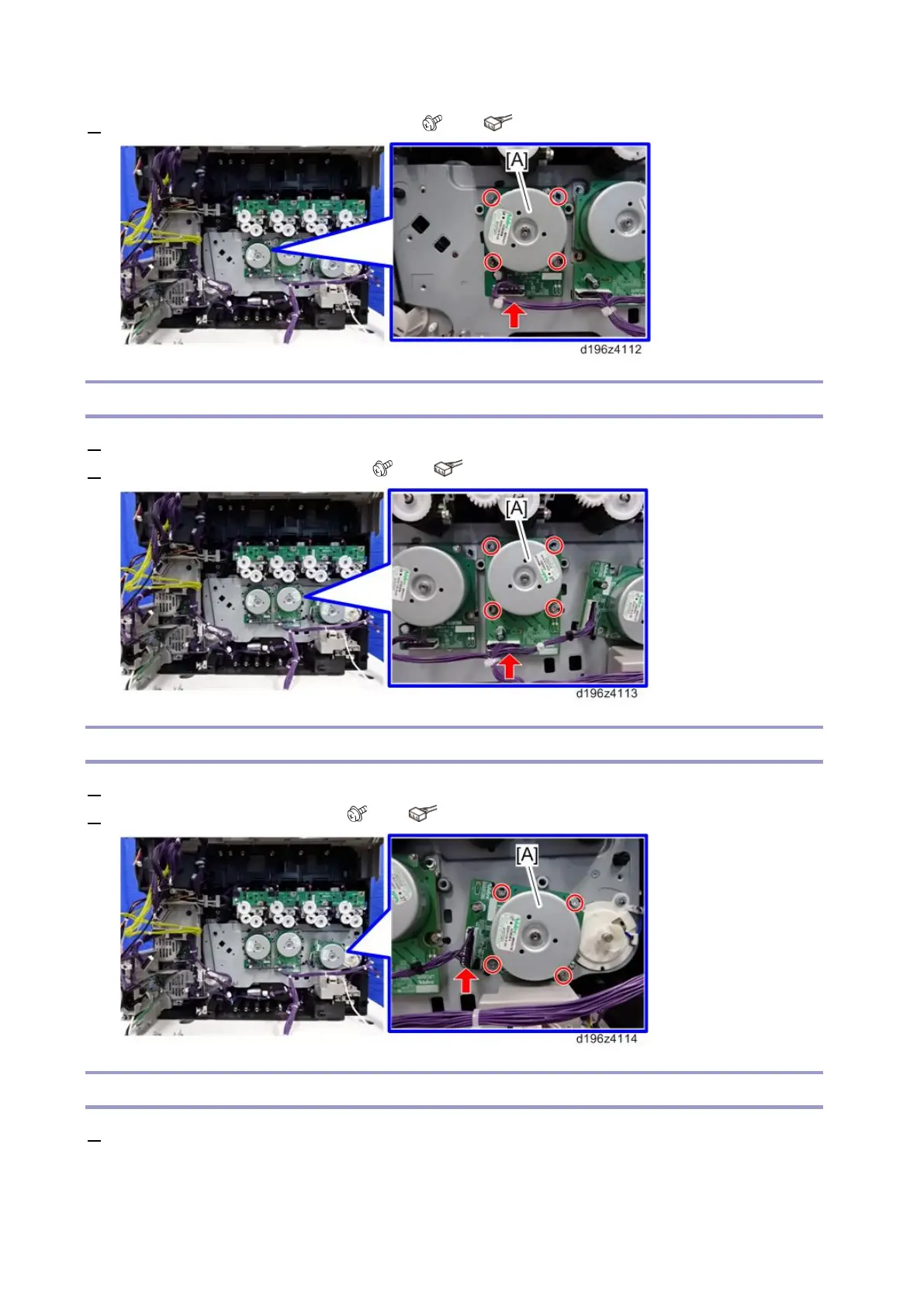

2. Remove the development motor (CMY) [A]. ( × 4, × 1)
Drum Motor (CMY)
1. Remove the power pack (Transfer) with the bracket. (Power Pack (Transfer))
2. Remove the drum motor (CMY) [A]. ( × 4, × 1)
Drum Motor (K)
1. Remove the power pack (Transfer) with the bracket. (Power Pack (Transfer))
2. Remove the drum motor (K) [A]. ( × 4, × 1)
Development Clutch (K)
1. Remove the drum motor (K). (Drum Motor (K))
