Ricoh MP C407

Image/Paper Transfer
262

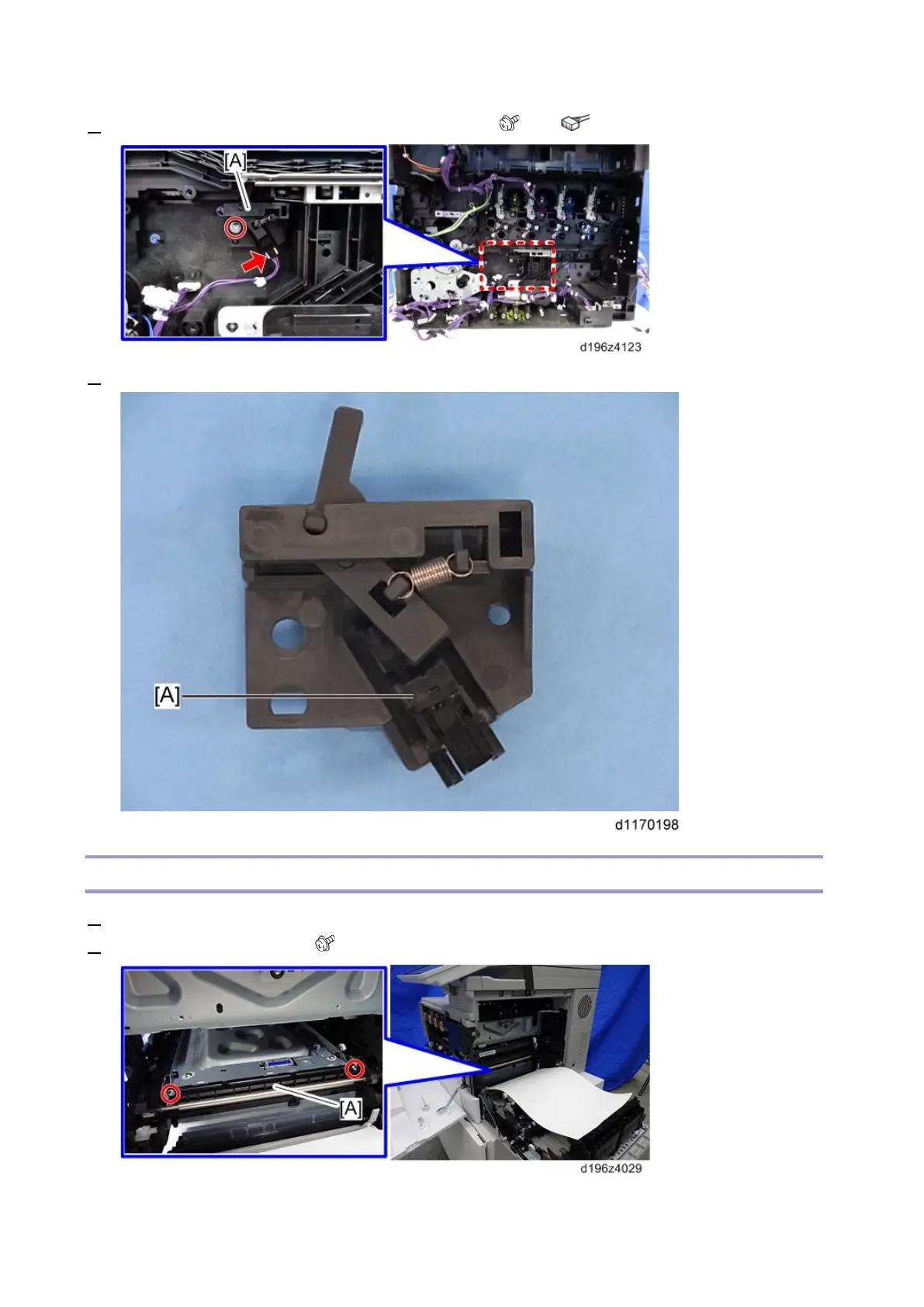

3. Remove the ITB contact HP sensor with the bracket [A]. ( × 1, × 1)
4. Remove the ITB contact HP sensor [A]. (Hook × 2)
ID Sensor
1. Remove the ITB unit. (ITB (Image Transfer Belt) Unit)
2. Remove the guide plate [A]. ( × 2)
