Scanner
240

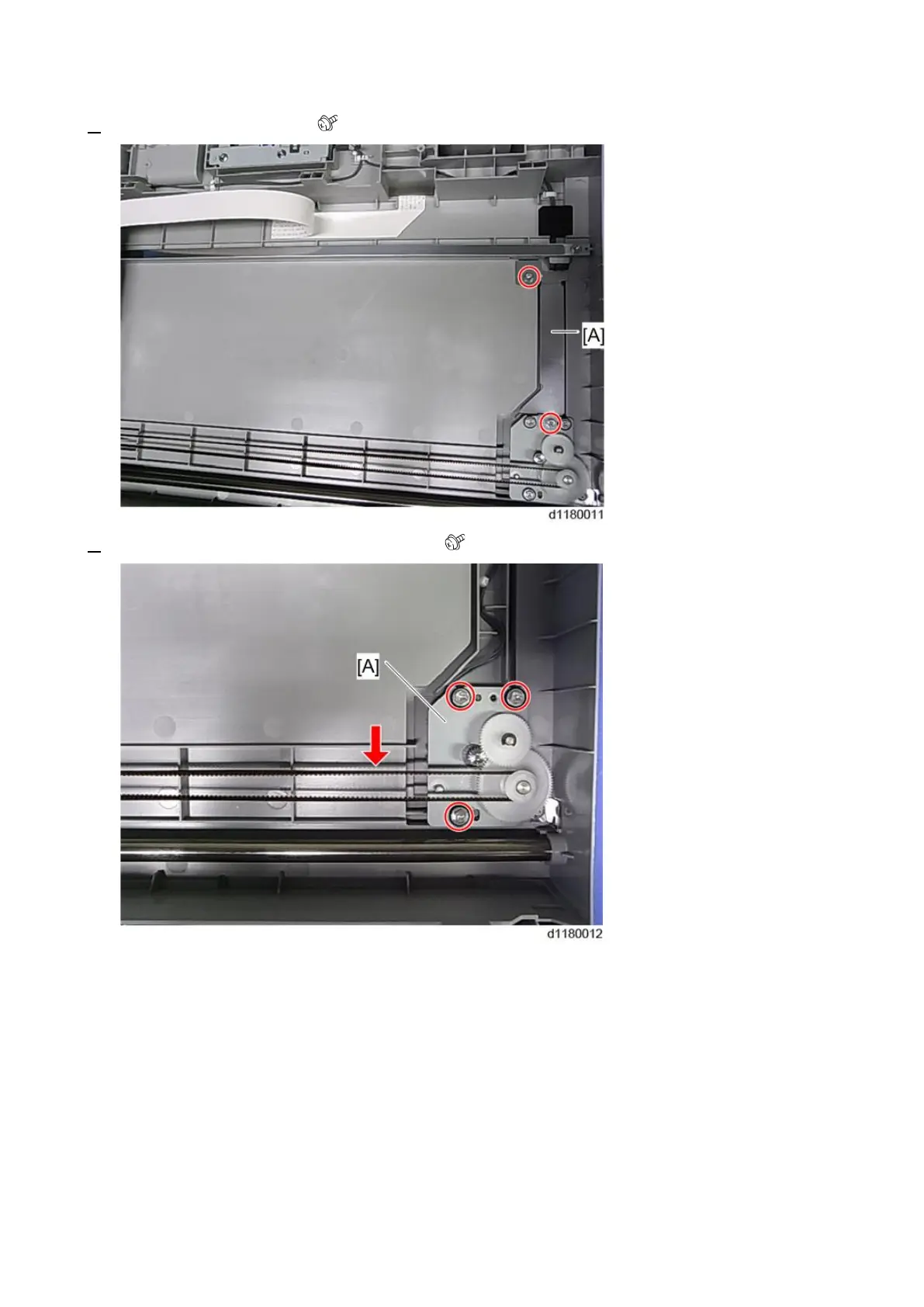

4. Remove the shield plate [A]. ( × 2)
5. Remove the scanner motor with the bracket [A]. ( × 3, belt × 1)
