Image Adjustment
188
2. Check the leading edge and side-to-side registration. Adjust the following SP modes if necessary.
Standard: 4.2 ± 2.0 mm for the leading edge registration, 2.0 ± 1.0 mm for the side-to-side registration.

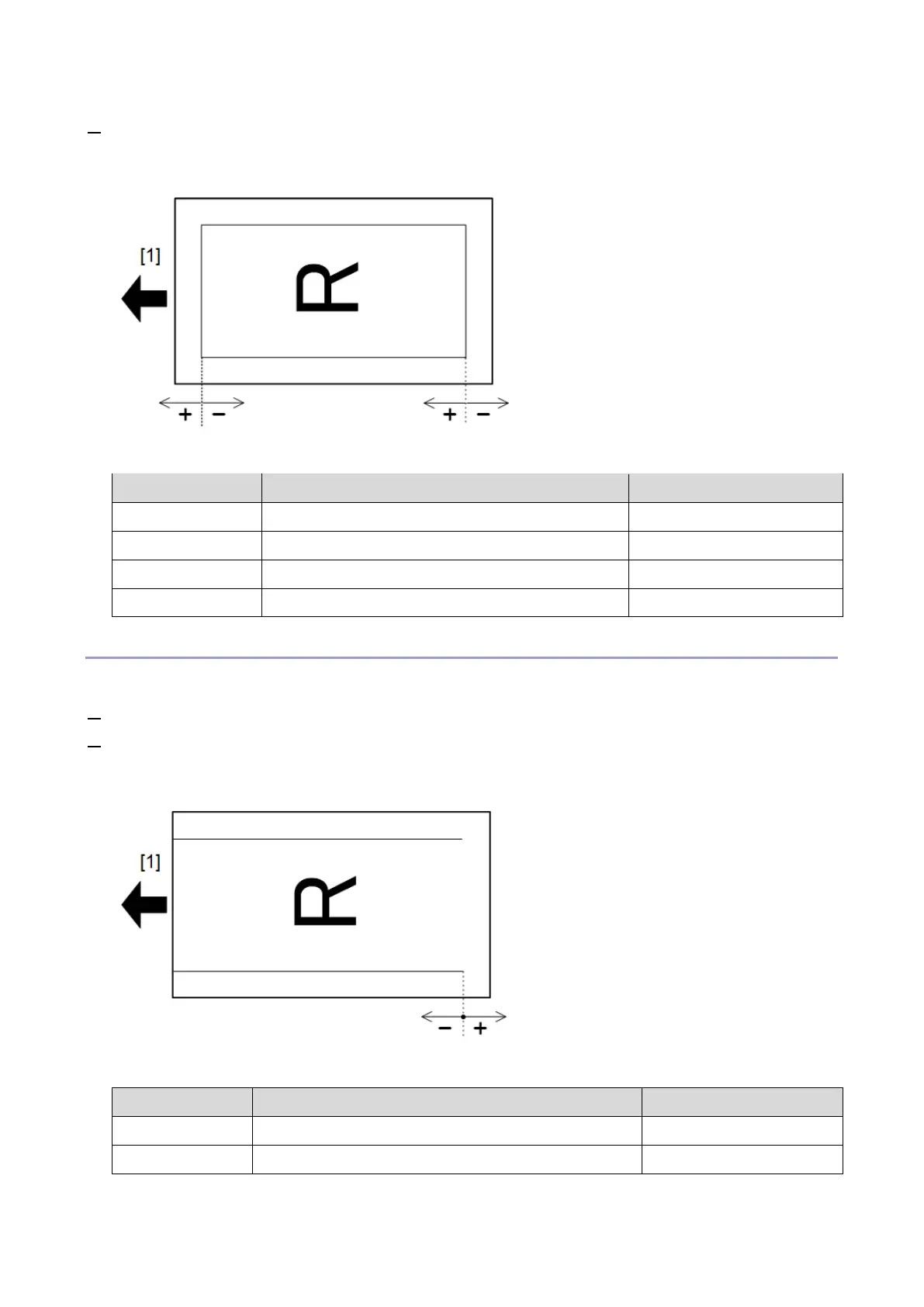

The following diagram shows how the image is affected when you adjust in the + or -. direction.
1: Feed direction
SP Code What It Does Adjustment Range
SP6-006-001 Side-to-Side Regist: Face ± 3.0 mm
SP6-006-002 Side-to-Side Regist (1-pass): Back ± 2.0 mm
SP6-006-010 Leading Edge Regist (1-pass): Face ± 5.0 mm
SP6-006-011 Leading Edge Regist (1-pass): Back ± 5.0 mm
ADF Trailing Edge Erase Width
Use A4/LT paper to make a temporary test chart as shown above.
1. Put the temporary test chart on the ADF. Then make a copy from one of the feed stations.
2. Check the trailing edge erase width. Adjust the following SP modes if necessary. The following diagram
shows how the image is affected when you adjust in the + or -. direction.
1: Feed direction
SP Code What It Does Adjustment Range
SP6-006-014 Trailing Edge Erase Width (1-Pass):Face ± 5.0 mm
SP6-006-015 Trailing Edge Erase Width (1-Pass):Back ± 5.0 mm
