Ricoh MP C407 User Manual

Image Adjustment
198

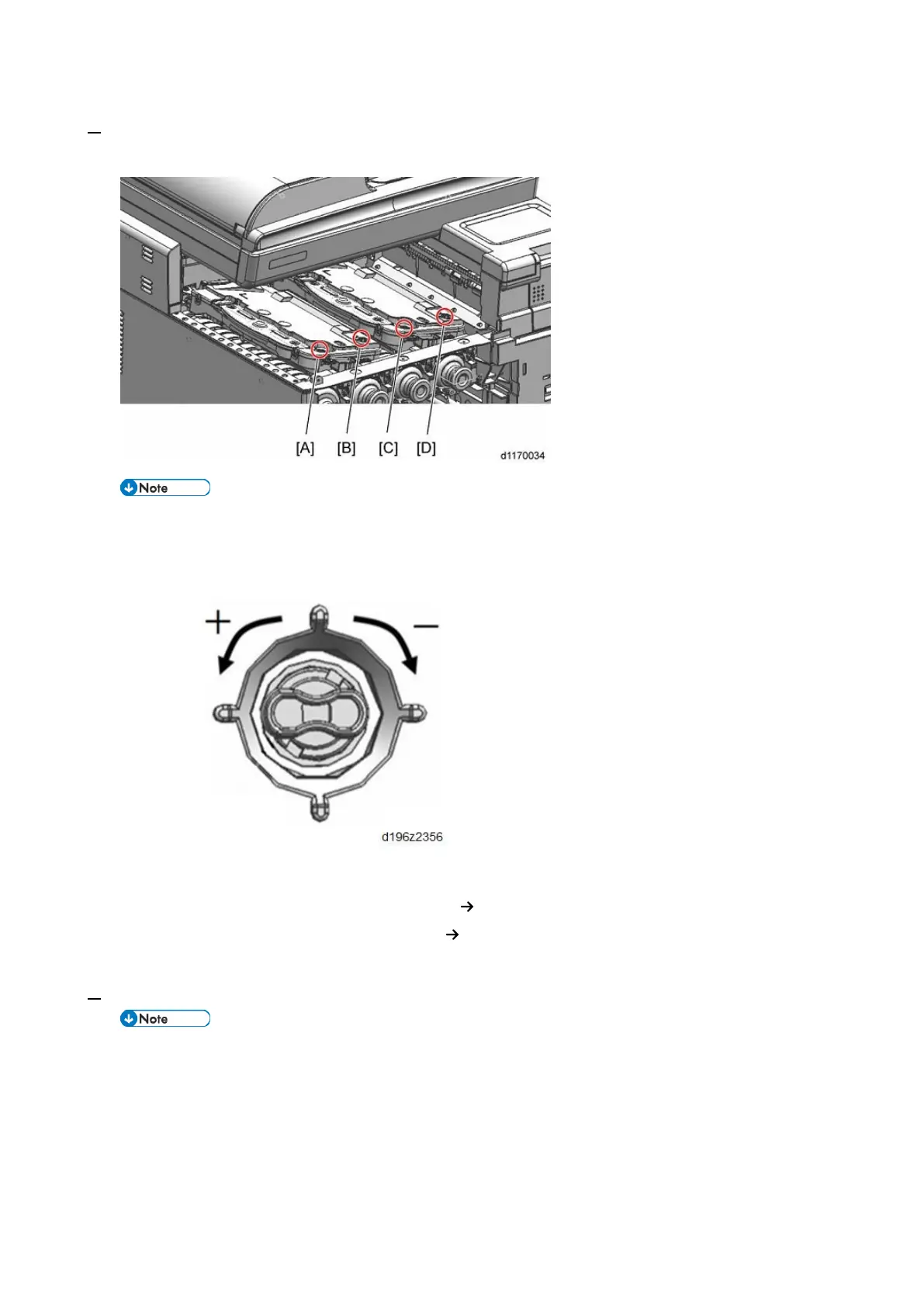

4. Rotate the knob(s) shown in the diagram [A] to [D] at 90 degree intervals until the SP value for the
affected color(s) is within ±5 (target: 0).
• There are two knobs on each of the two LD units. A click is felt every 90 degree rotation.
• Turning the knob clockwise by 90 degrees changes the SP value by -1.
• Turning the knob counter-clockwise by 90 degrees changes the SP value by +1.
• Example:
SP value for magenta in Step 4 was “+6” Turn knob [C] 6 clicks (1 1/2 rotations) clockwise.
• SP value for yellow in Step 4 was “-7” Turn knob [D] 7 clicks (1 3/4 rotations)
counter-clockwise.
5. Reattach all parts that you removed in the above steps.
• Do not touch the LD units while installing the Paper Exit Tray. Otherwise, the LD unit may
move, and you may have to adjust the color skew again.

Ricoh MP C407 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Speed (B/W)	42 ppm
Print Speed (Color)	42 ppm
Max Print Resolution	1200 x 1200 dpi
Duplex Printing	Yes
Monthly Duty Cycle	150, 000 pages
Paper Size	A4, A5, B5
Connectivity	USB, Ethernet, Wi-Fi
Mobile Printing	Apple AirPrint, Google Cloud Print, Mopria
Operating System Compatibility	Windows, Mac OS, Linux
