Scanner
234

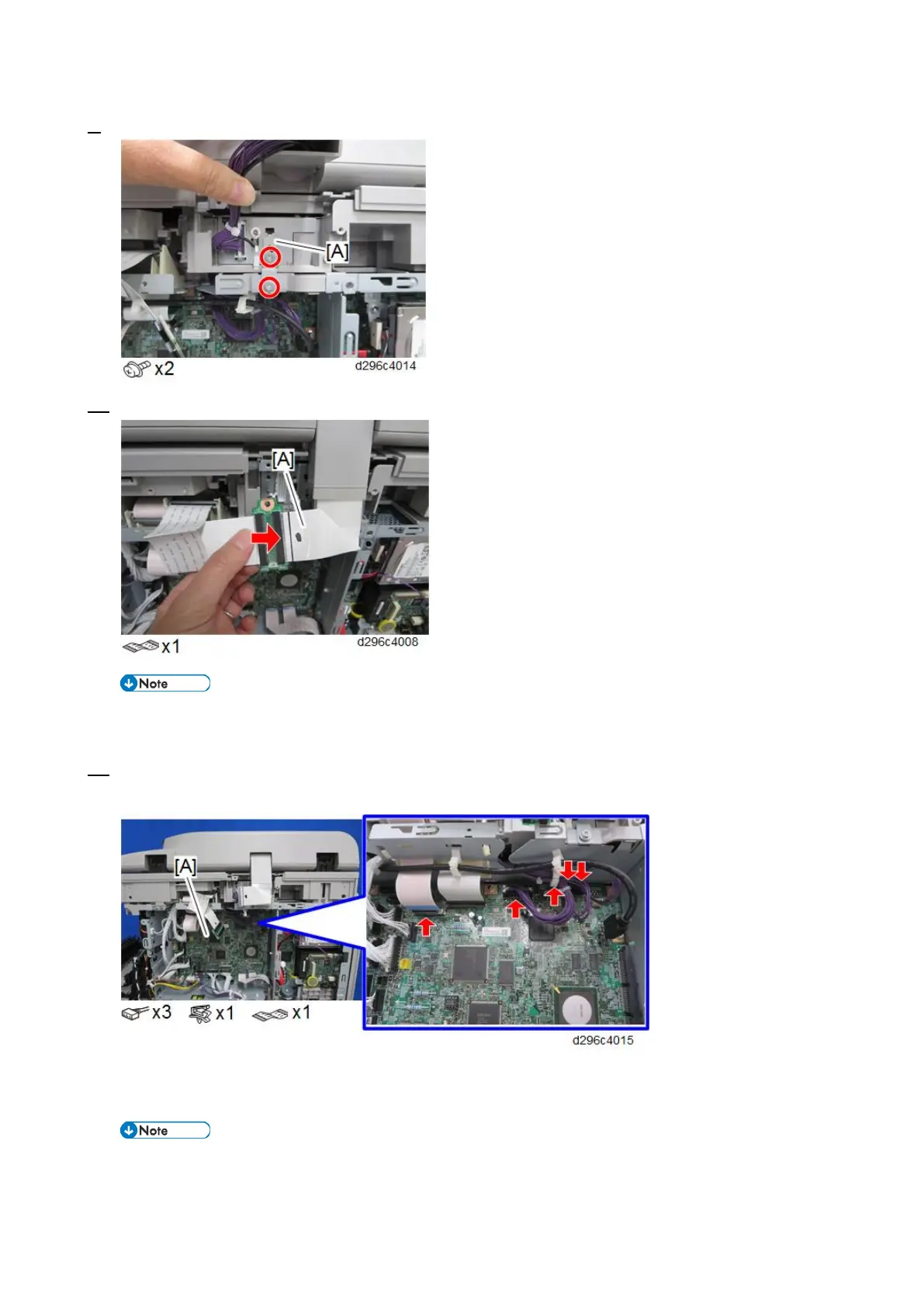

9. Remove the grounding plate [A].
10. Disconnect the FFC [A] from the relay board.
Disconnect the FFC for relay board by pulling it out straight, because it does not have a lock mechanism.
When reassembling, the FFC must be connected straight.
11. Disconnect the harnesses and FFC for the scanner unit.
When lifting the scanner unit, move the harnesses out of the frame so that they do not interfere.
When disconnecting or connecting the FFC, push the lock button to unlock it as shown below.
