PCDU, Toner Supply
253

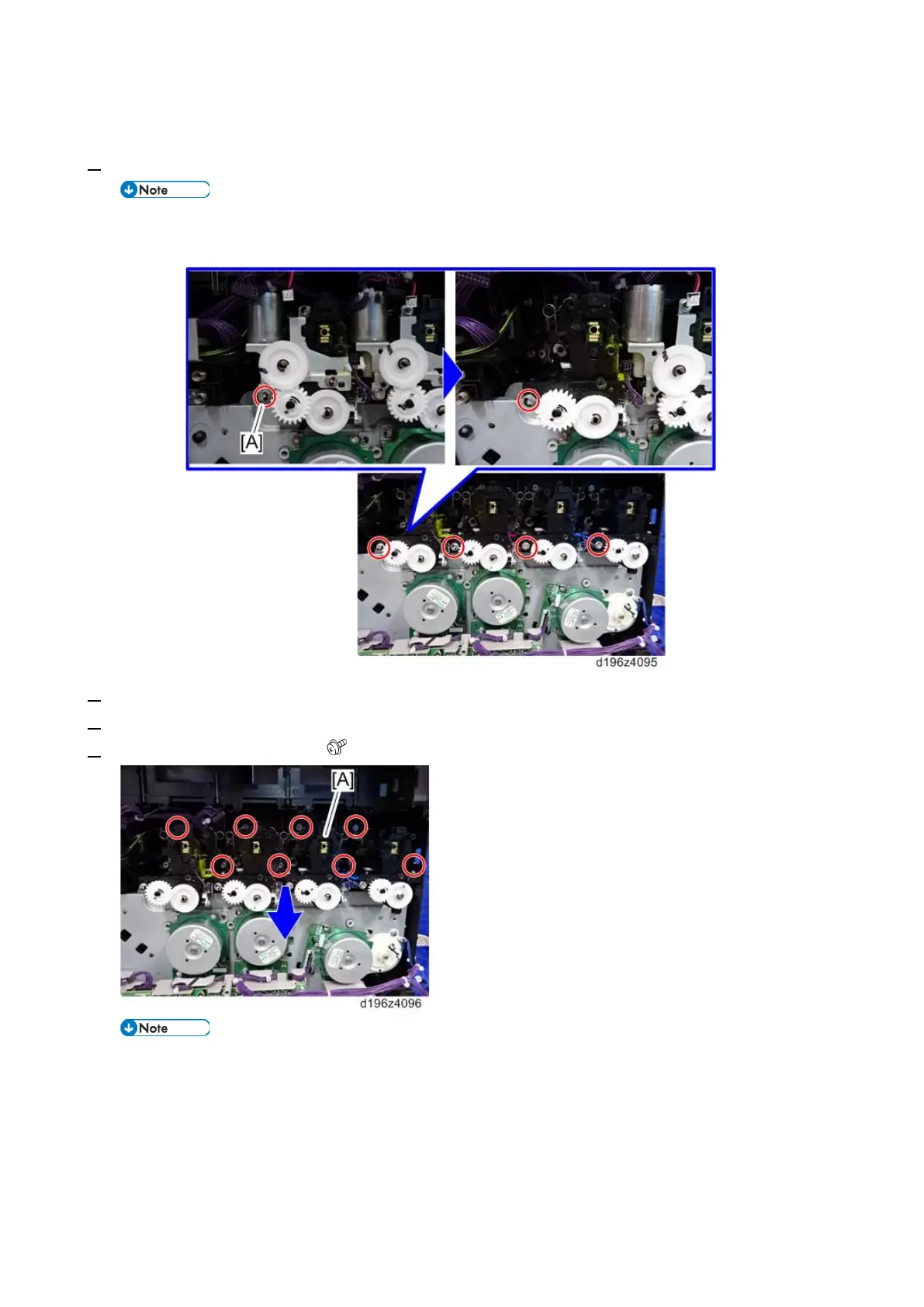

Replacing the Toner Transport Section
1. Remove the toner supply motors (All colors). (Toner Supply Motors)
• After removing the toner supply motor, secure four screws [A] on the toner transport section to
prevent toner from flying off.
2. Remove the toner bottles (all colors).
3. Remove the PCDU (all colors). (PCDU (Photo Conductor and Development Unit))
4. Remove the toner supply unit. ( × 8)
• Pull out the toner supply unit upward at an angle.
