Ricoh MP C407 User Manual

Fusing
283

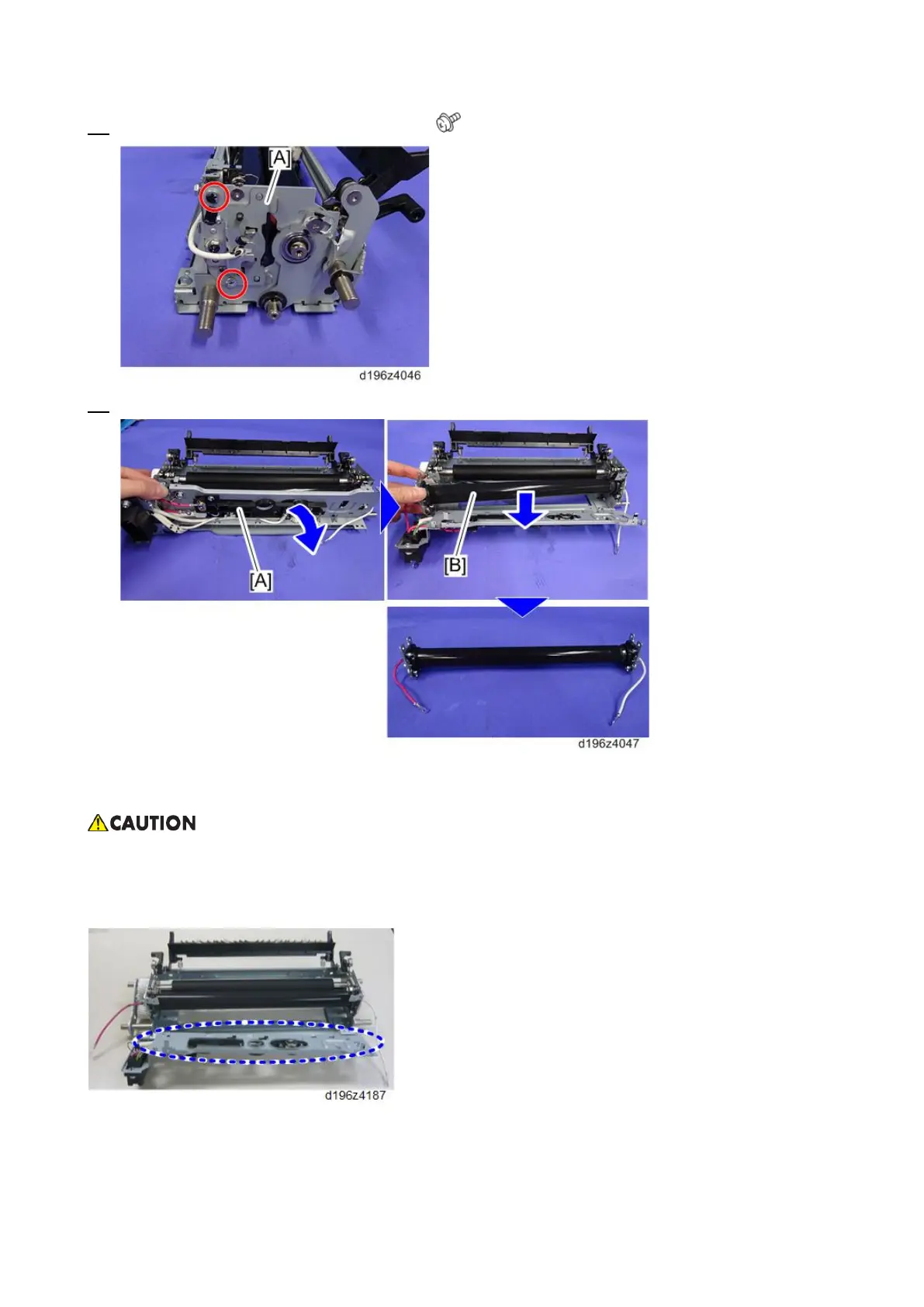

11. Remove the screws of the frame [A] at the left. ( × 2)
12. Pull out the rear frame [A], and take out the fusing sleeve belt assembly [B].
Do not touch the surface of the fusing sleeve belt assembly.
When reattaching the rear frame, do not let the fusing sleeve belt hit the projection of the thermostat and the
frame.
When reattaching the fusing sleeve belt assembly, do not let the fusing sleeve belt assembly hit the projection of
the sensor or the screws on the stay.

Ricoh MP C407 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Speed (B/W)	42 ppm
Print Speed (Color)	42 ppm
Max Print Resolution	1200 x 1200 dpi
Duplex Printing	Yes
Monthly Duty Cycle	150, 000 pages
Paper Size	A4, A5, B5
Connectivity	USB, Ethernet, Wi-Fi
Mobile Printing	Apple AirPrint, Google Cloud Print, Mopria
Operating System Compatibility	Windows, Mac OS, Linux
