Ricoh MP C407

Duplex
318

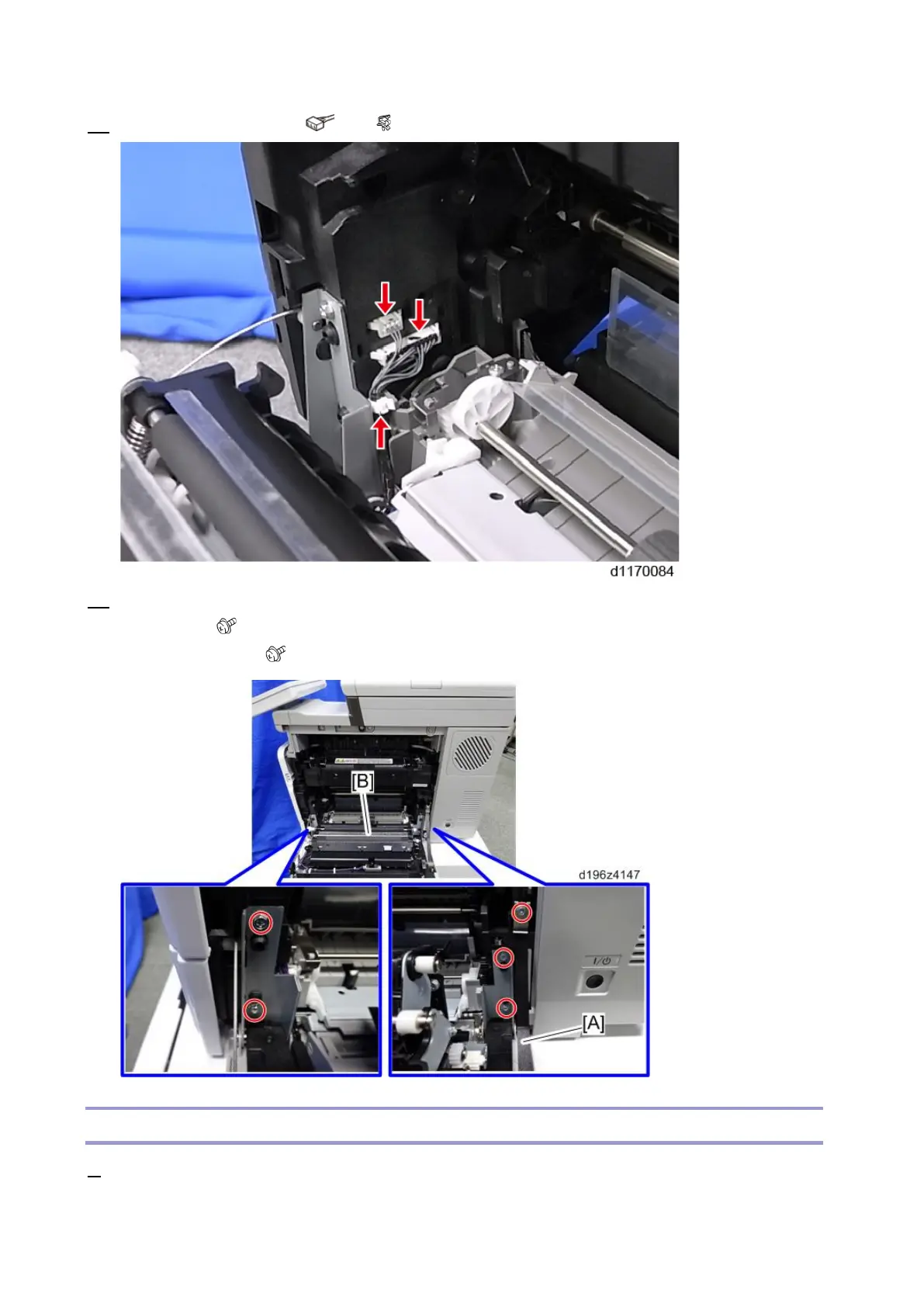

10. Disconnect the connectors. ( × 2, × 1)
11. Release the belt [A] and then remove the duplex unit [B].
• Belt [A] ( × 1)
• Duplex unit [B] ( × 4)
Duplex Entrance Sensor
1. Open the right door.
