Toner Supply Section
551
Toner Supply Section

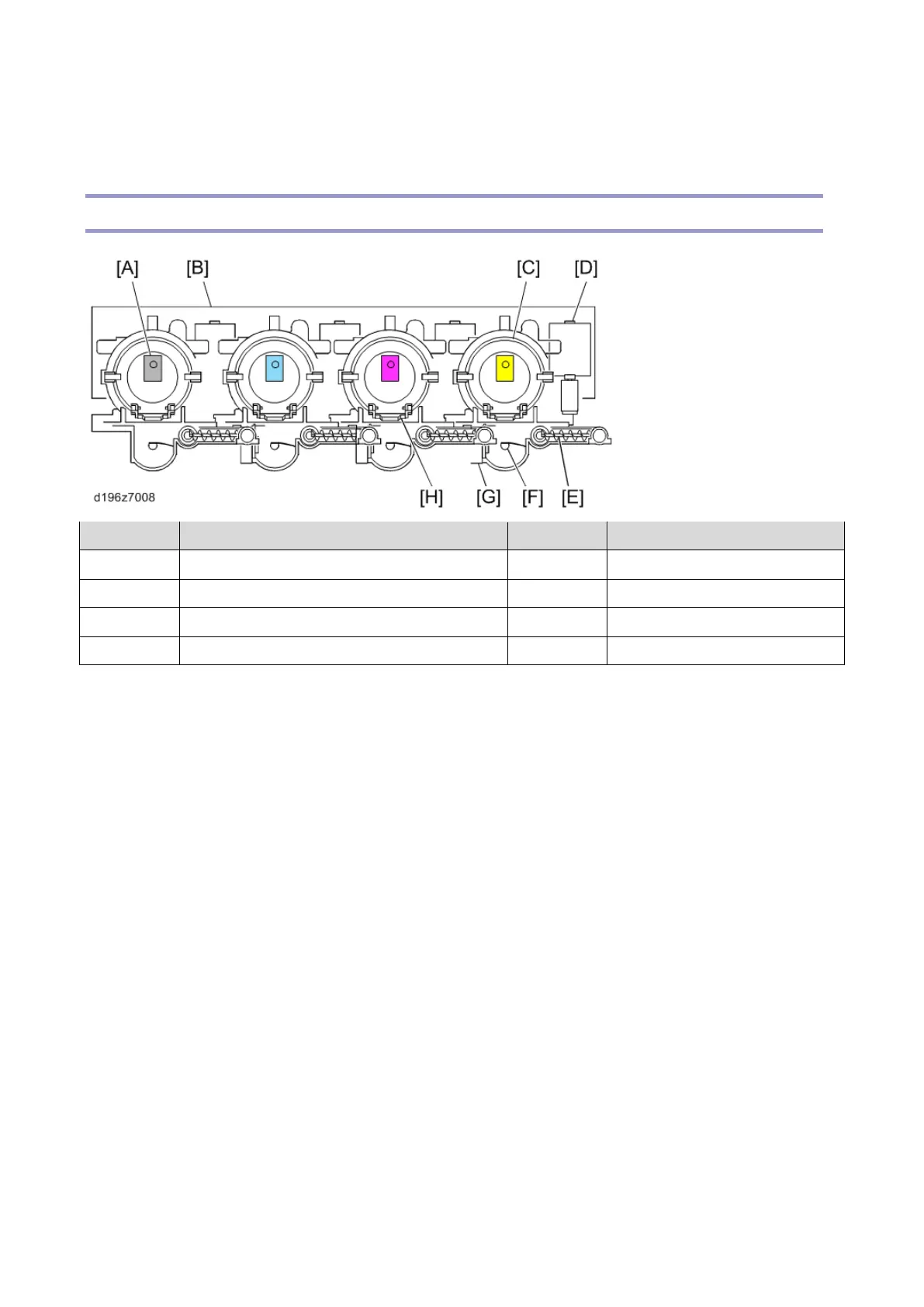

Overview
Callout Item Callout Item
[A] ID Chip [E] Toner Transport Coil
[B] Bottle ID Chip Contact Board [F] Agitator
[C] Toner Bottle [G] Toner End Sensor
[D] Toner Supply Motor [H] Shutter
