Ricoh MP C407 User Manual

Electrical Parts
589
Electrical Parts

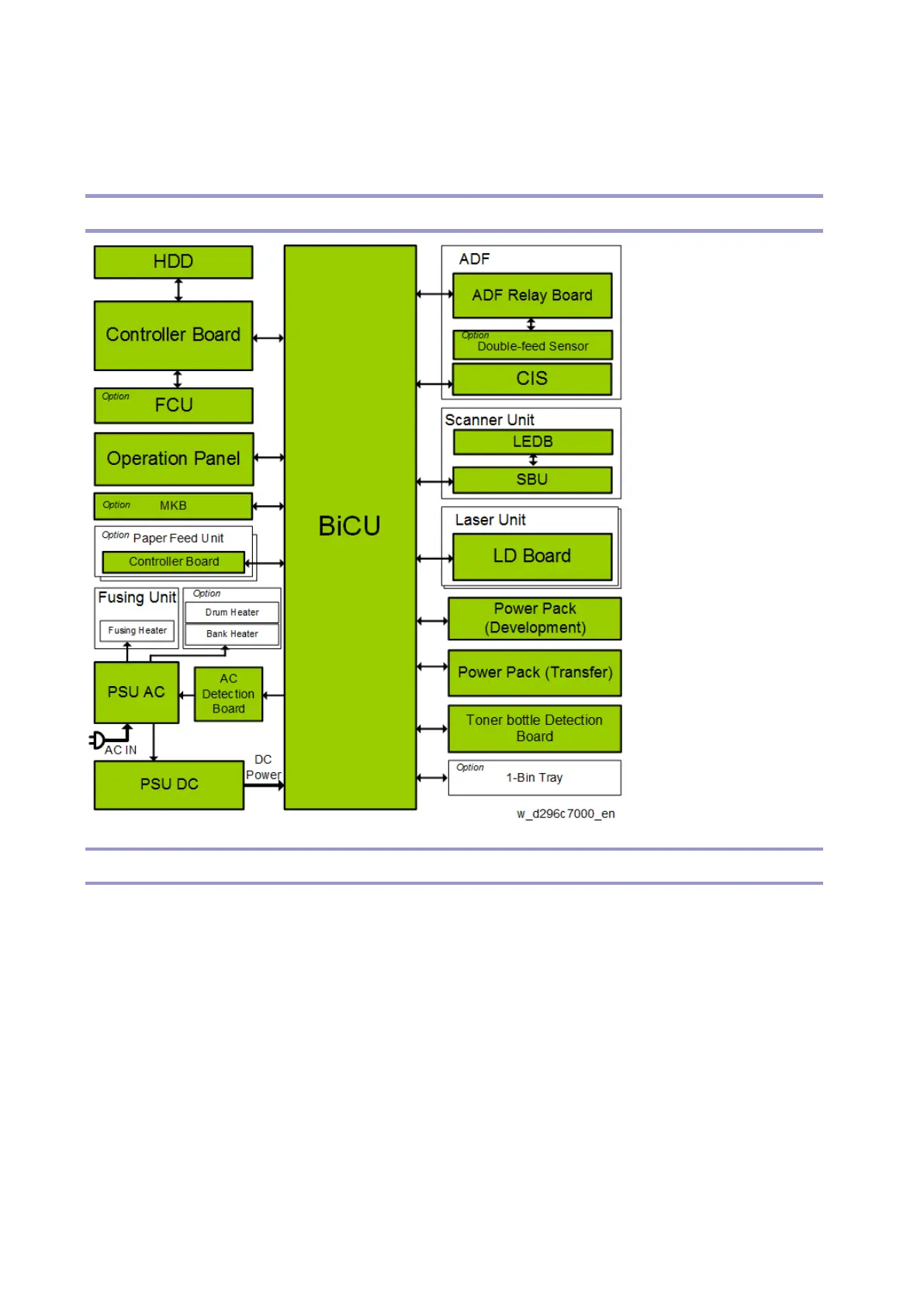

Block Diagram
Board Outline
Controller Board
Controls the MFP system overall. Contains an x86 CPU, controller ASIC, IO control ASIC, and RAM.
SBU
Scanning control circuit which performs analog signal processing and AD image conversion of the CCD read
image.
It also has an interface with the IPU, and controls scanner input and output signals according to CPU
commands.
LD Board
LD control circuit which drives the laser diode with a universal driver.

Ricoh MP C407 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Speed (B/W)	42 ppm
Print Speed (Color)	42 ppm
Max Print Resolution	1200 x 1200 dpi
Duplex Printing	Yes
Monthly Duty Cycle	150, 000 pages
Paper Size	A4, A5, B5
Connectivity	USB, Ethernet, Wi-Fi
Mobile Printing	Apple AirPrint, Google Cloud Print, Mopria
Operating System Compatibility	Windows, Mac OS, Linux
