1-Bin Tray BN1030 (D574-58)
67

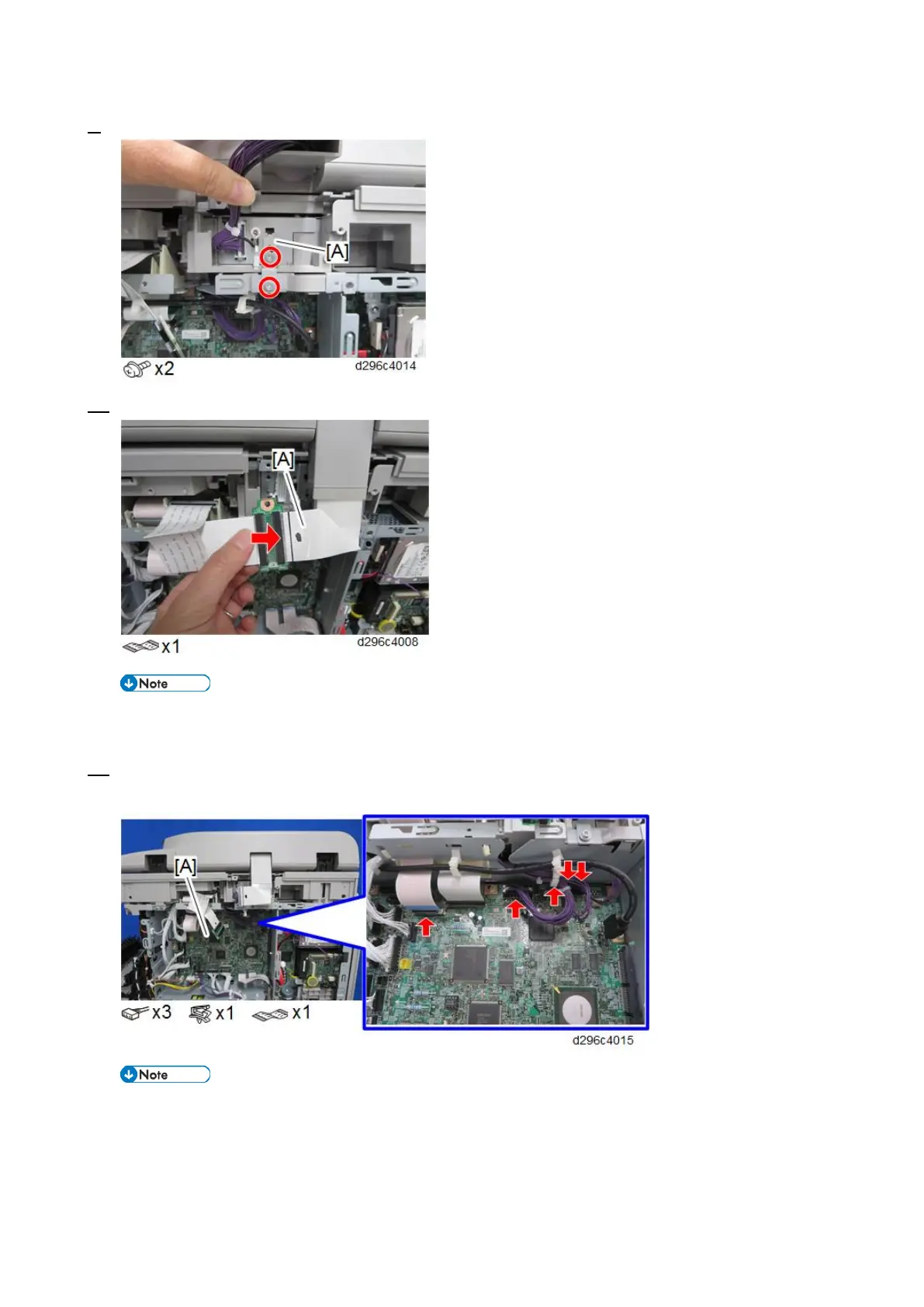

9. Remove the grounding plate [A].
10. Disconnect the FFC [A] from the relay board.
Disconnect the FFC for the relay board while pulling it out straight, because it does not have a lock
mechanism.
11. Remove the harnesses and FFC from the scanner unit on the BiCU [A].
When lifting the scanner unit, move the harnesses out of the frame so that they do not interfere.
Disconnect the scanner FFC for the BiCU while pressing the lock release button.
