Optional Counter Interface Unit Type M12 (B870-21)
77

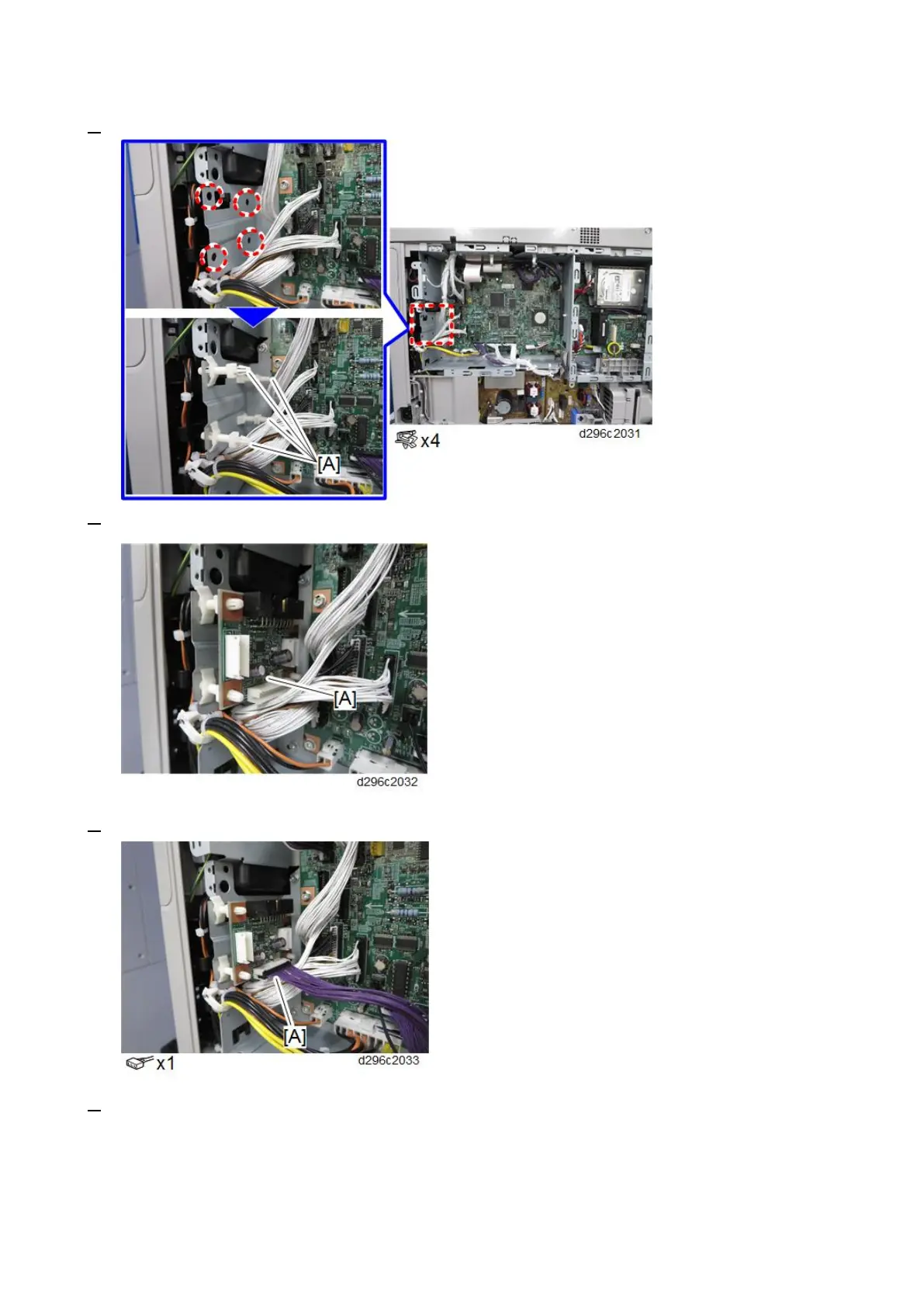

2. Install the four studs [A] in the controller box.
3. Install the key counter interface board [A] shown below on the four studs.
4. Connect the harness included in this kit to the connector [A] on the interface board.
5. Do the following steps:
• Route the harness through the rear of the interface board, and then connect it to CN570 [A].
• Bind the harness at the point [B] with the harness band included in this kit to prevent interference with
other harnesses.

Ricoh MP C407 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Speed (B/W)	42 ppm
Print Speed (Color)	42 ppm
Max Print Resolution	1200 x 1200 dpi
Duplex Printing	Yes
Monthly Duty Cycle	150, 000 pages
Paper Size	A4, A5, B5
Connectivity	USB, Ethernet, Wi-Fi
Mobile Printing	Apple AirPrint, Google Cloud Print, Mopria
Operating System Compatibility	Windows, Mac OS, Linux
