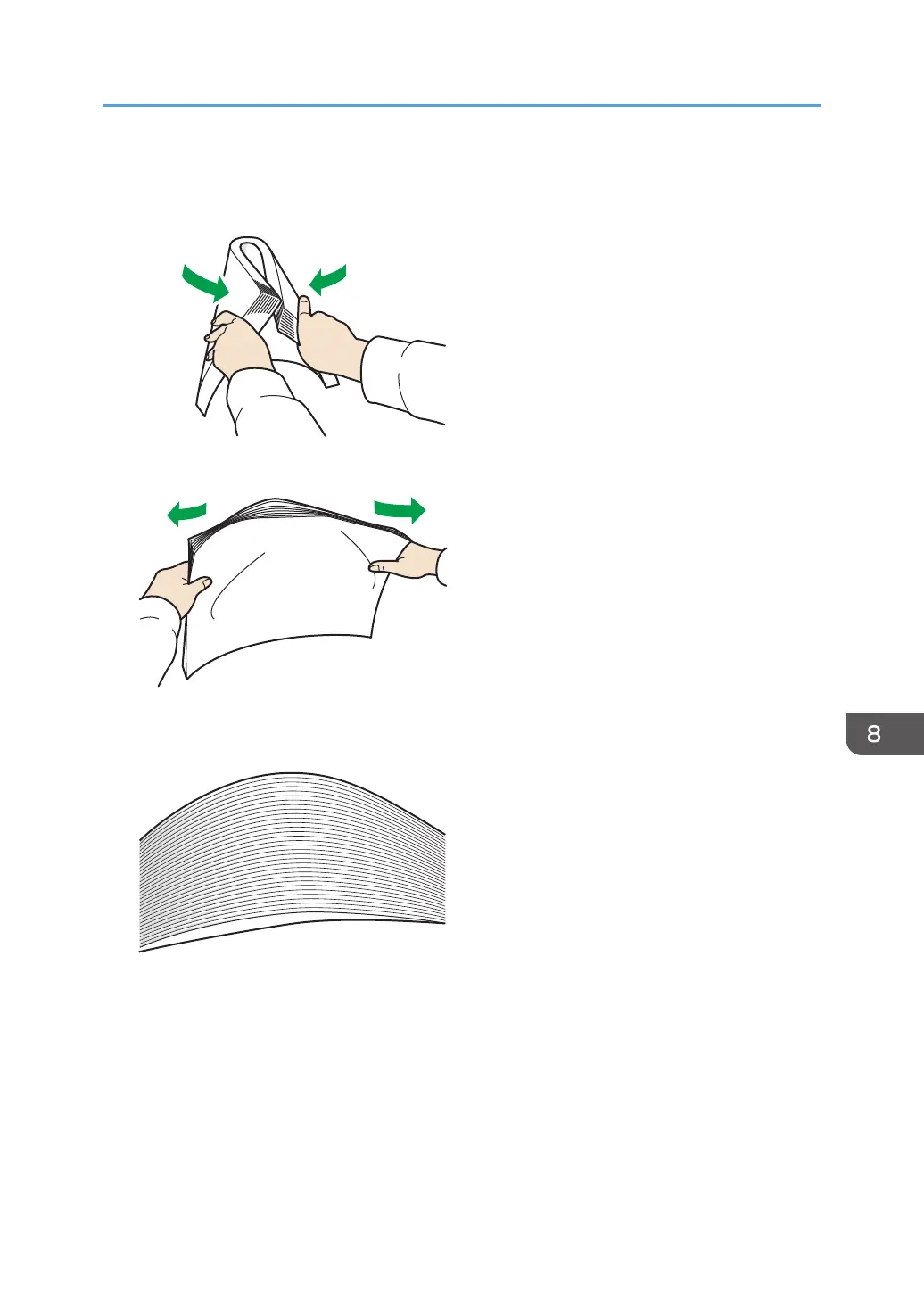

2. Holding its shorter ends, flex the stack back and forth to create space between the sheets.

Repeat this several times.

D0CMIC1422

D0CMIC1423

3. Make sure there is space between the sheets.

D0CMIC1424

Loading Paper into the Paper Tray
