09: Finishing: Fold

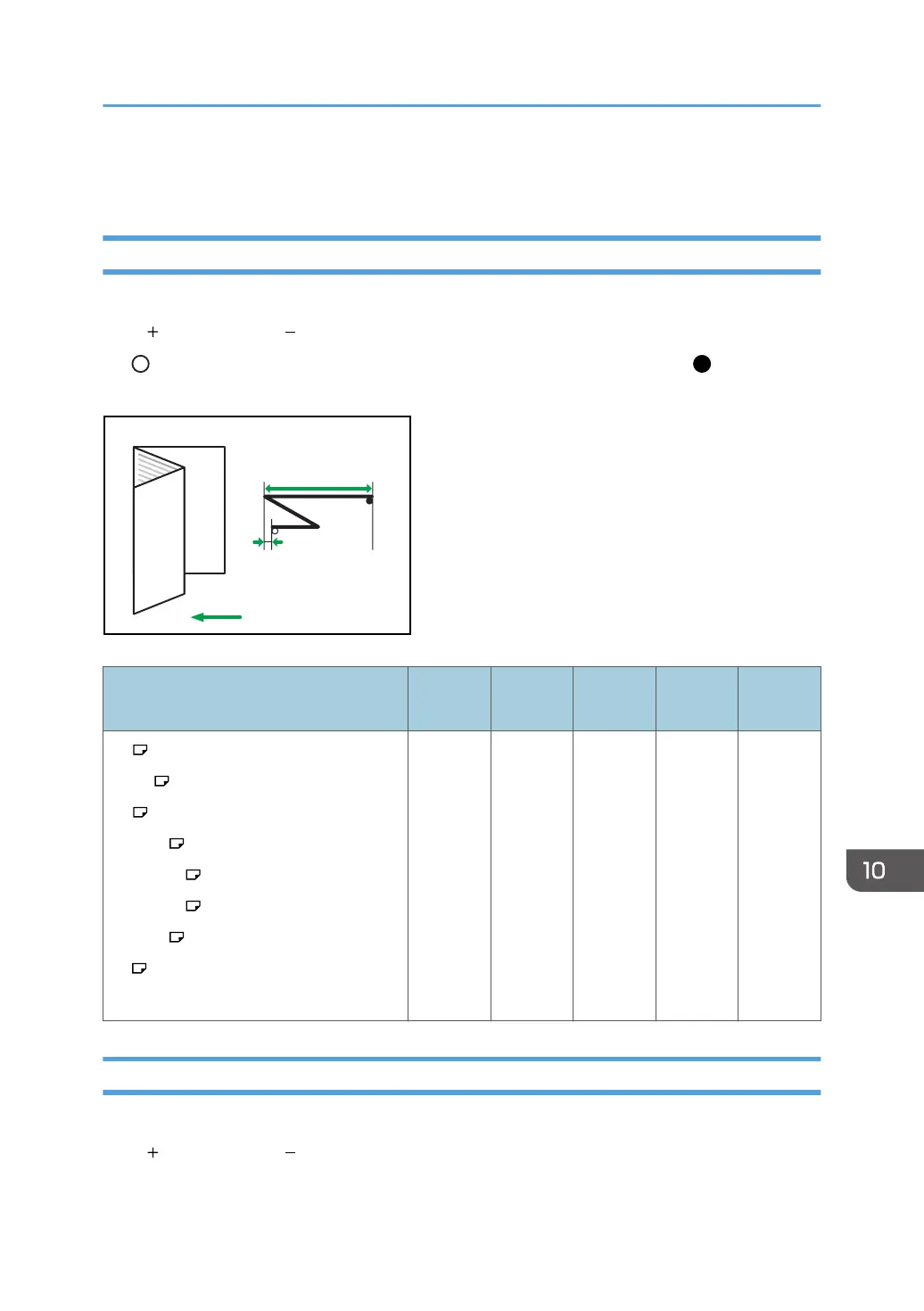

0901: Z-fold Position 1
Adjust the width of the bottom end segment (S) of Z-folded sheets when using the Paper Folding Unit.
Press [ ] to increase and [ ] to reduce (S).
The mark indicates the leading edge (relative to the paper feed direction), and the mark indicates
the trailing edge.
Paper feed direction
S
L
DRC805
Setting Items
Default
Value
Max.
Value
Min.
Value
Step Unit
A3
B4 JIS
A4
11 × 17
8
1
/
2
× 14
8
1
/
2
× 11
12 × 18
8K
Other Paper Sizes
0.0 4.0 -4.0 0.2 mm
0902: Z-fold Position 2
Adjust the overall fold size (L) of Z- folded sheets when using the Paper Folding Unit.
Press [ ] to increase and [ ] to reduce (L).
09: Finishing: Fold
