4.Replacement and Adjustment
91

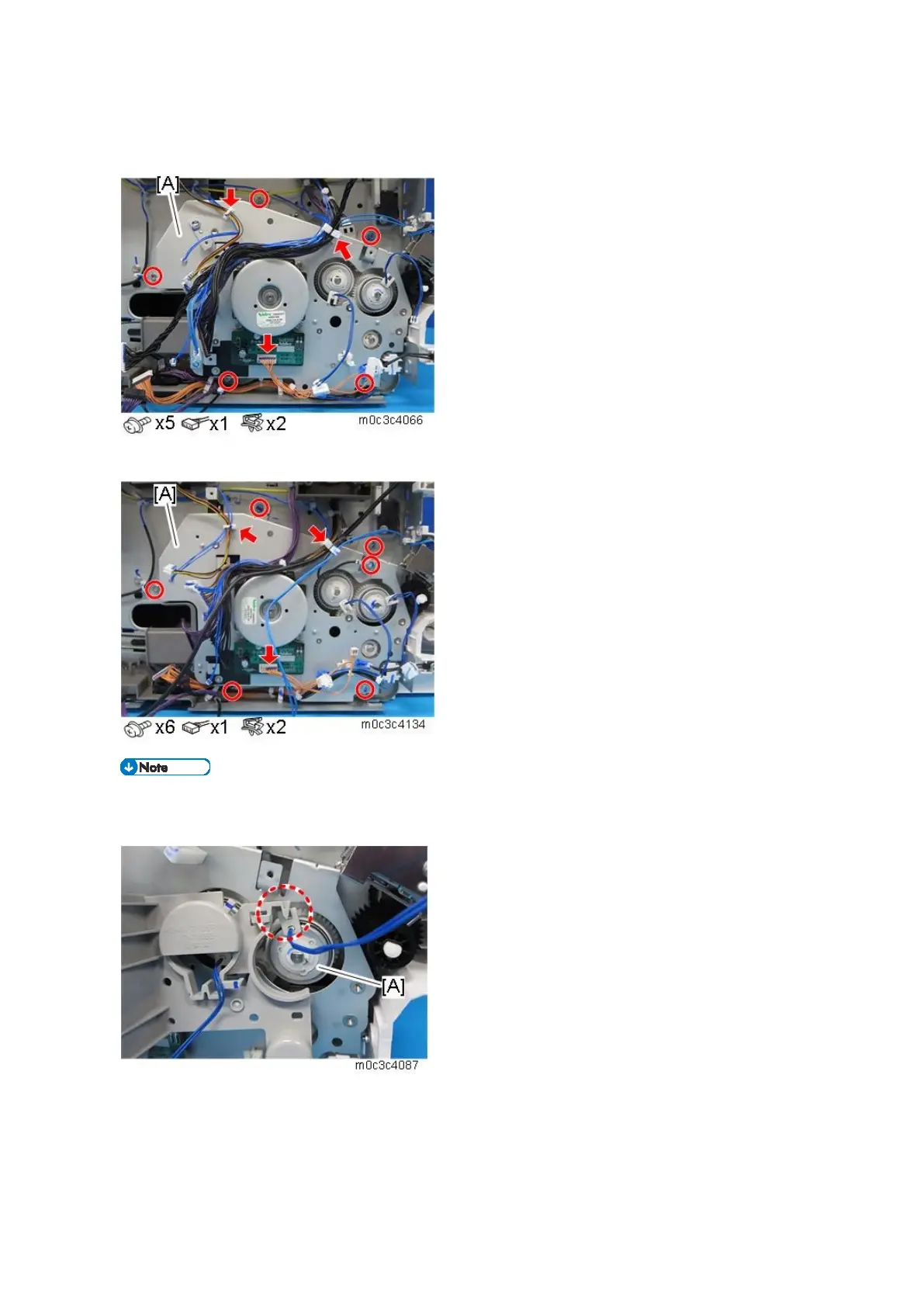

7. Remove the drive unit [A].
Printer models:
MF models:
When re-installing the harness guide plate, first set the stopper of the relay clutch [A] over the
projection.
Make sure that the stoppers of the clutches are set over projections on the harness guide plate.
