Ricoh SP 3710DN - ADF;ARDF Unit (Only MF Models); ADF Unit (for Four-Line LCD Models)

4.Replacement and Adjustment
46
ADF/ARDF Unit (Only MF Models)
ADF Unit (for Four-line LCD Models)
ADF Unit

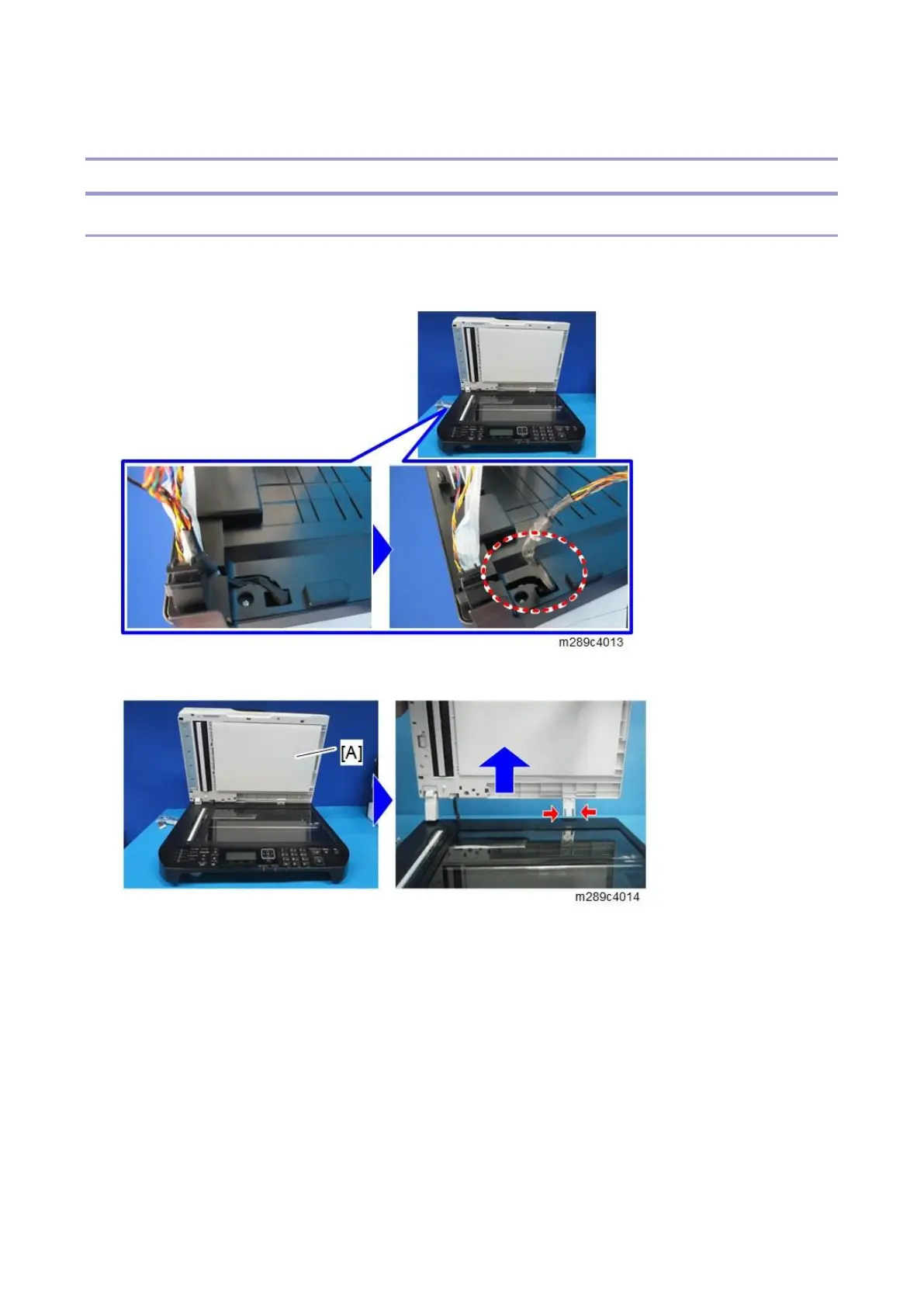

1. Remove the scanner unit (Scanner Unit).
2. Turn the scanner unit over, and move the harnesses out of the frame.
3. Open the ADF unit [A] and remove it in the direction of the blue arrow (hooks).
