Ricoh SP 3710DN - Component Layout (MF Models)

7.Detailed Descriptions
206
No.
Description
No.
Description
1
Cooling fan
6
Operation panel board
2
HVP
7
LCD
3
PSU
8
Main board
4
Environment thermistor
9
Rear cover switch
5
Front cover switch

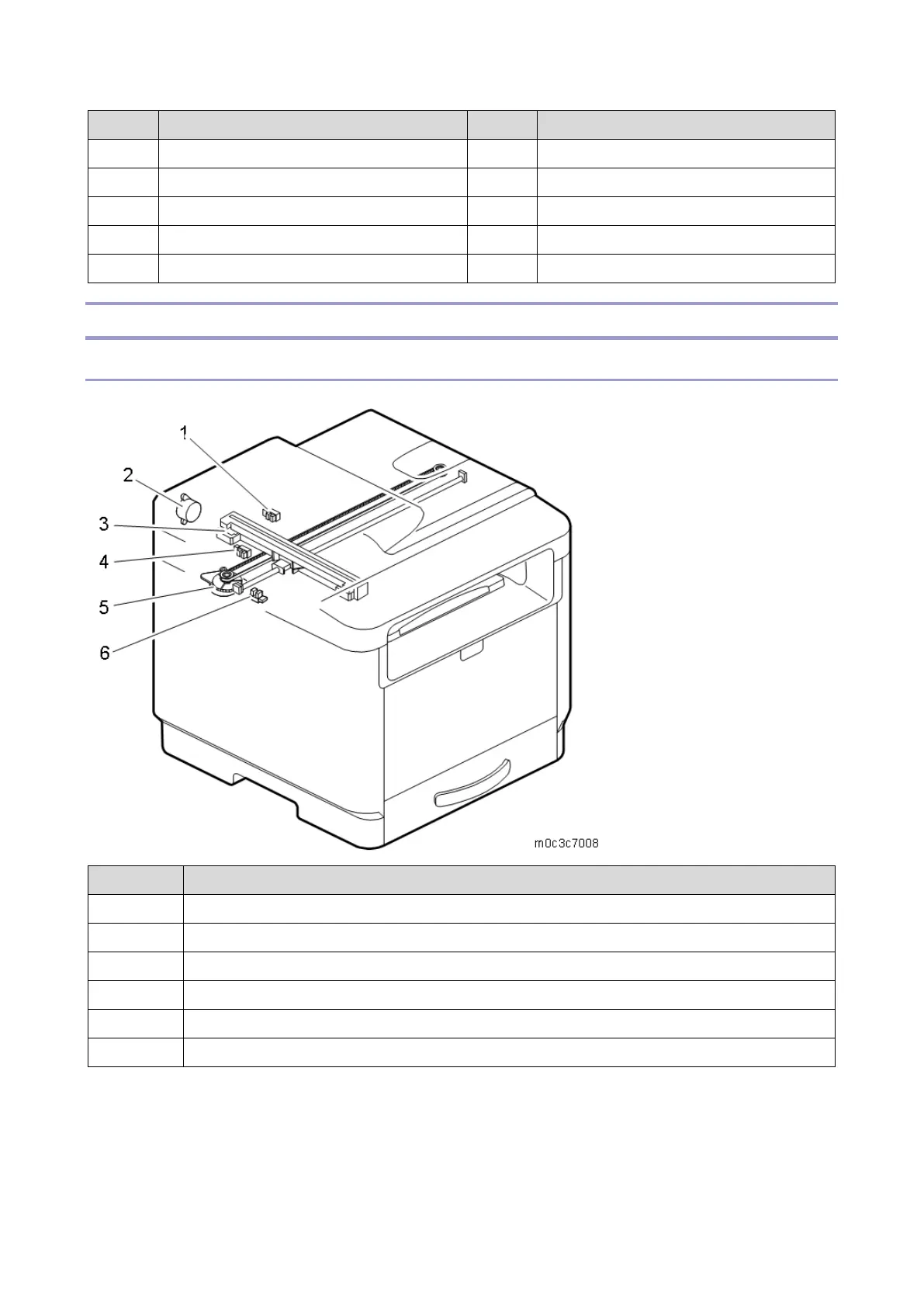

Component Layout (MF Models)
ADF, Scanner
No.
Description
1
Original set sensor
2
ADF motor (ARDF motor)
3
Scanner carriage unit
4
ADF feed sensor (ARDF feed sensor)
5
Scanner motor
6
Home position sensor
