Ricoh SP 3710DN - Hot Roller Stripper Pawls

4.Replacement and Adjustment
86
hot roller.

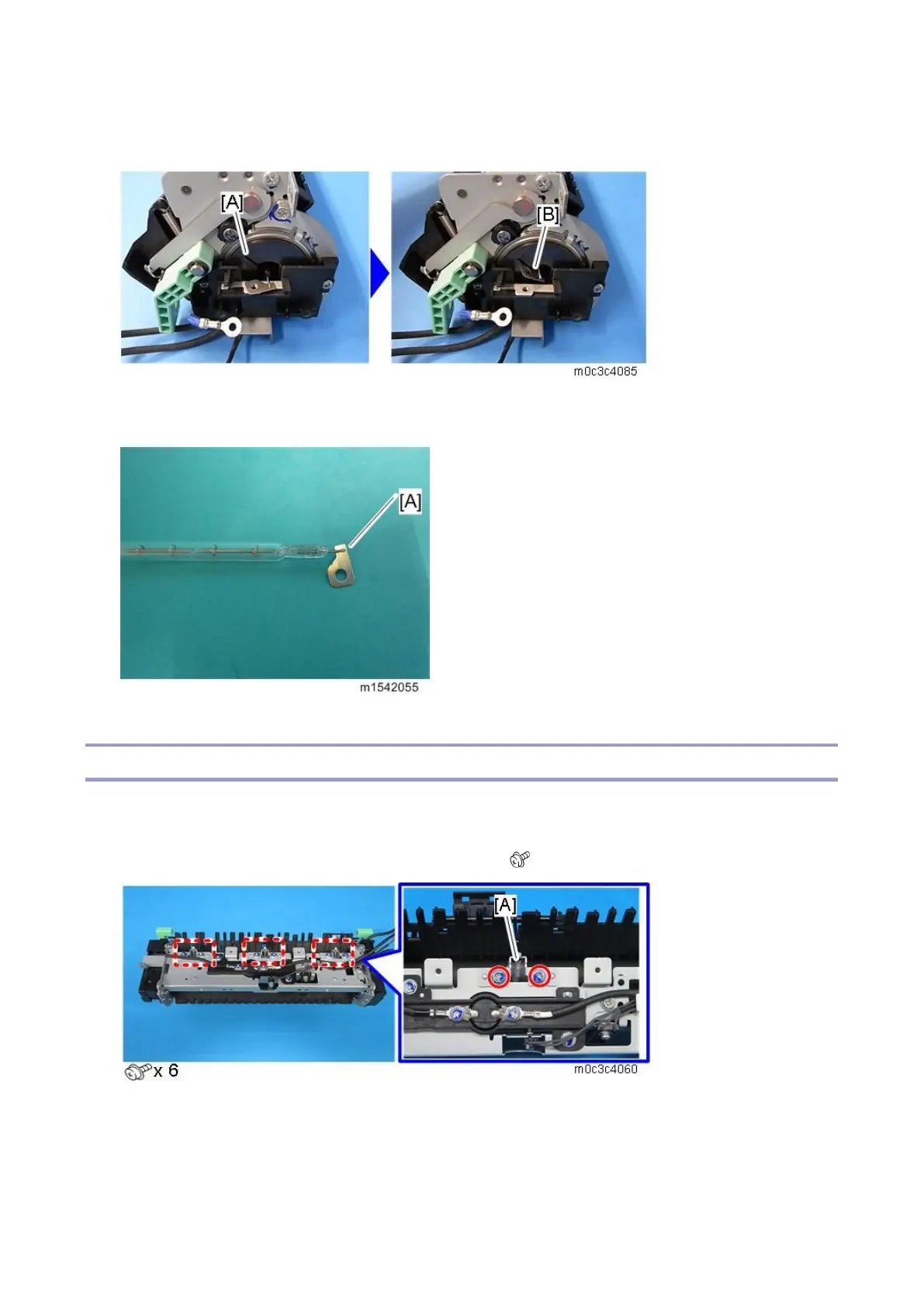

When installing a new lamp, the flat terminal [A] as shown below must be on the right side of the
fusing unit (fusing cable side).
Hot Roller Stripper Pawls
1. Remove the fusing unit (Fusing Unit).
2. Remove the fusing upper cover (Fusing Upper Cover).
3. Remove the metal holders [A] (1 holder for each pawl: x 2 each).
