4.Replacement and Adjustment
85

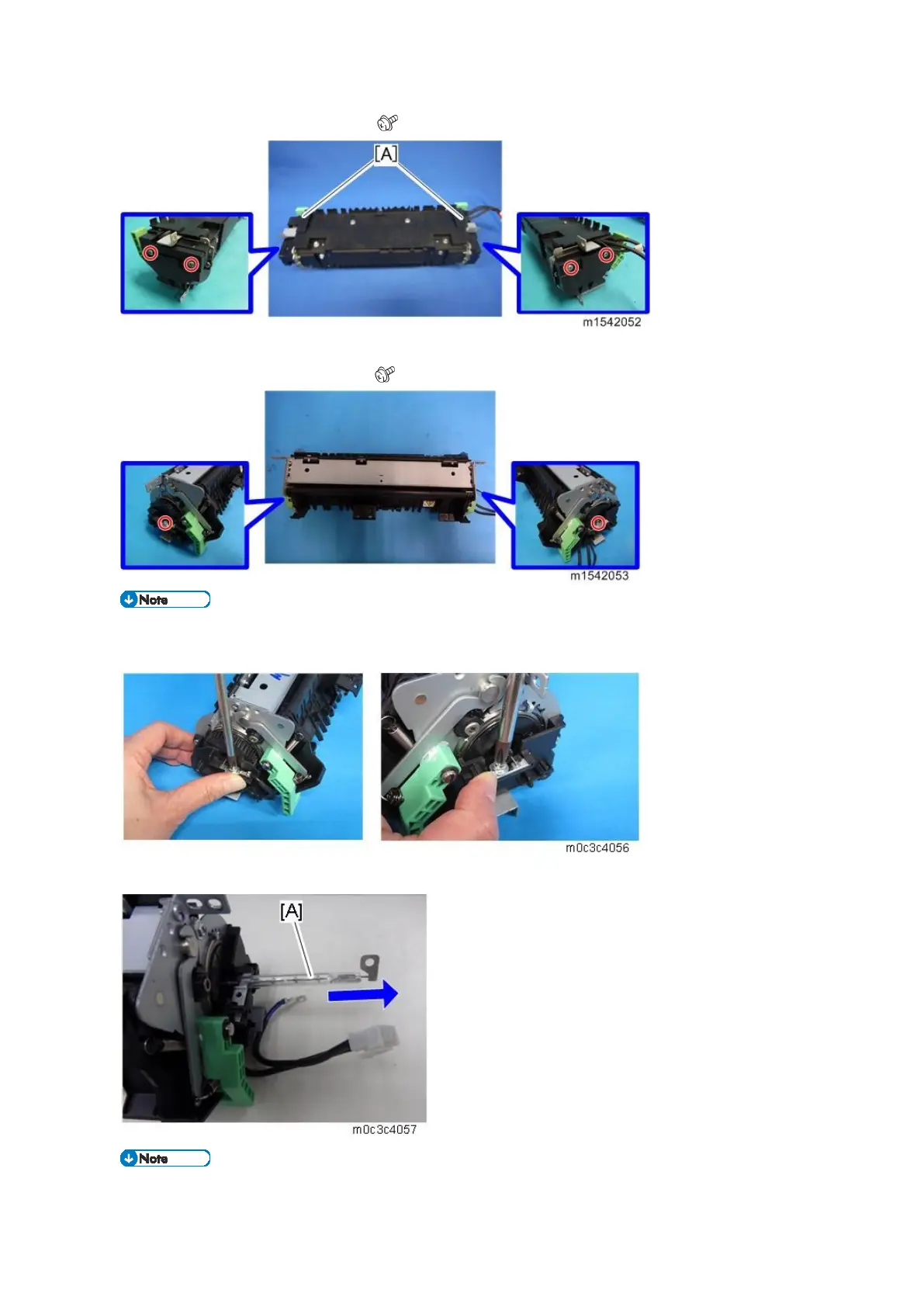

2. Remove the fusing side covers [A] ( x 2 each).
3. Turn the fusing unit over.
4. Remove the screws on both sides ( x 1 each).
Hold the terminal and flat nut with your finger firmly. Otherwise, the lamp secured together with the
flat nut moves with rotation of the screw, which causes the lamp to break.
5. Remove the fusing lamp [A].
Pull out the fusing lamp while aligning the flat terminal [B] with the notch [A] on the right side of the
