Ricoh SP 3710DN - Product Overview; Component Layout

7.Detailed Descriptions
201
Product Overview

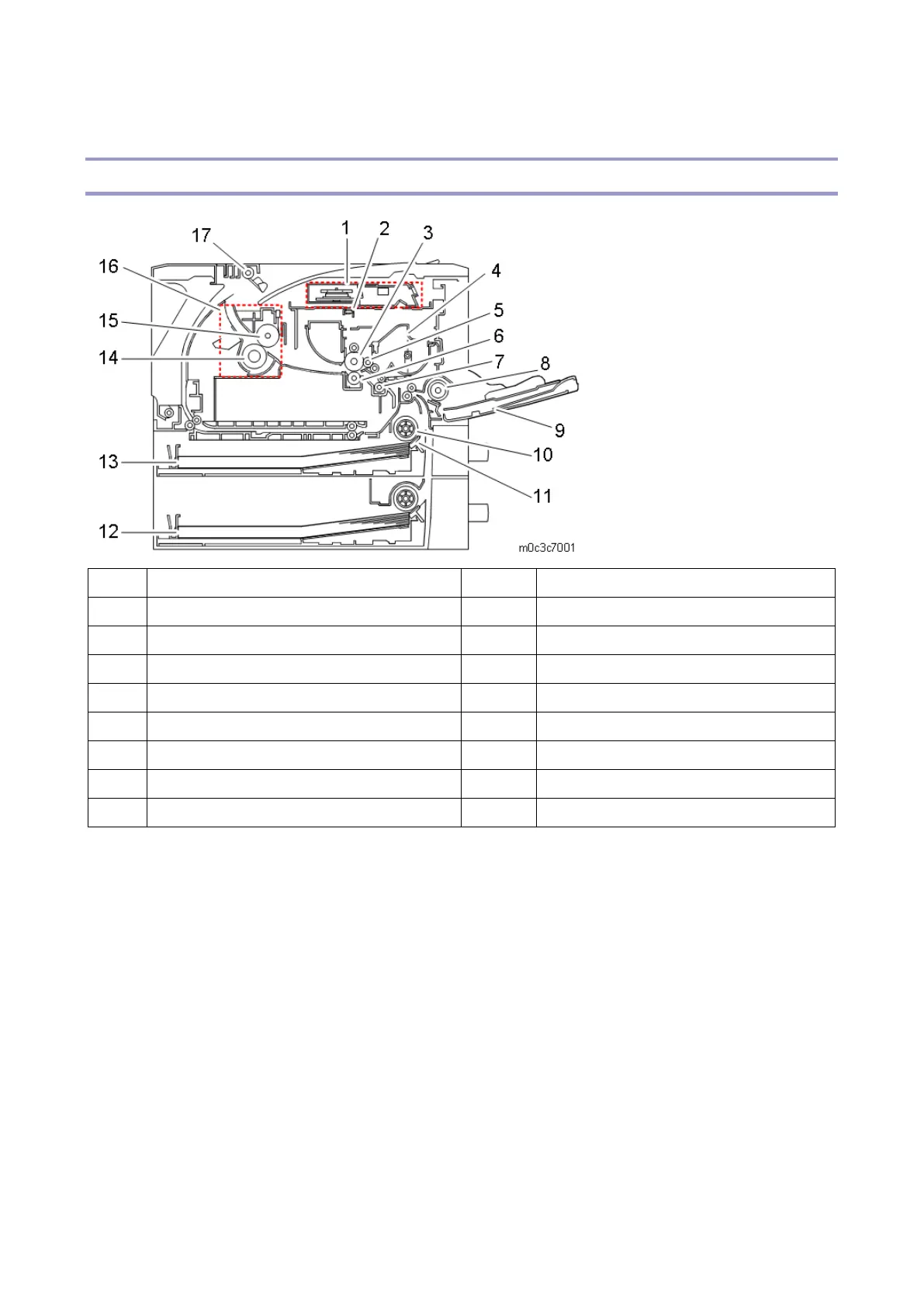

Component Layout
1.
Laser unit
10.
Paper feed roller
2.
Quenching lamp
11.
Friction pad
3.
Drum
12.
Optional paper tray
4.
Cartridge (AIO-type)
13.
Paper tray
5.
Development roller
14.
Pressure roller
6.
Transfer roller
15.
Hot roller
7.
Registration roller
16.
Fusing unit
8.
By-pass feed roller
17.
Paper exit roller
9.
By-pass feed tray
