Ricoh SP 3710DN Field Service Manual

7.Detailed Descriptions
212
No.
Item
2.
Pick-up roller
3.
Feed roller
4.
Registration roller
5.
ARDF feed sensor
6.
Scanning guide plate
7.
Transport roller
8.
Original exit roller
Mechanism

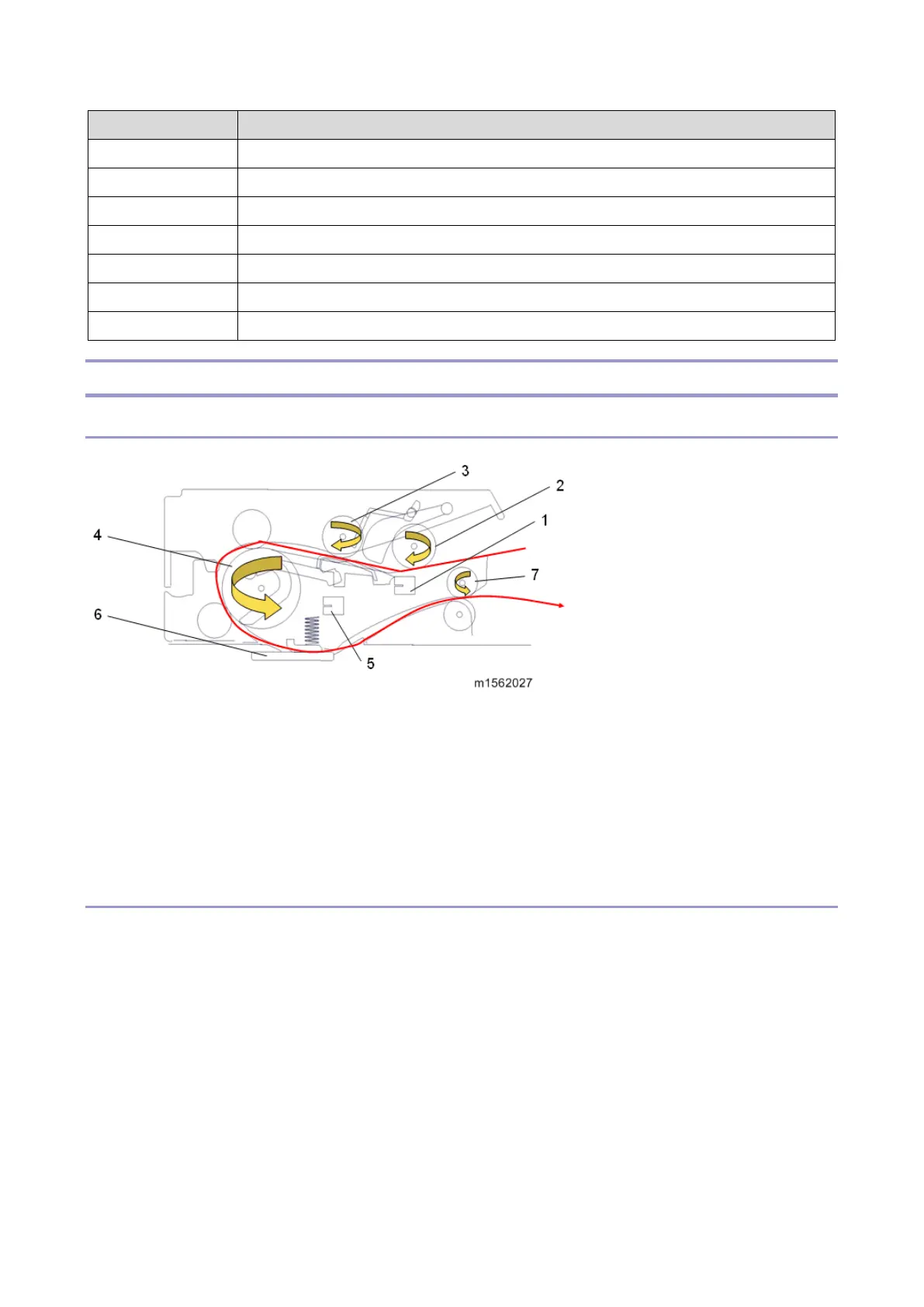

ADF Paper Path
When the original set sensor [1] detects an original and the machine has a copying or scanning job, the
ADF motor rotates to drive the pick-up roller [2], separation roller [3] and feed roller [4] to feed the
original to the ADF feed sensor [5]. If the ADF feed sensor [5] does not detect paper after this
sequence, the machine determines that an original jam has occurred.
If the ADF feed sensor [5] detects paper, then the CIS starts scanning through the exposure glass [6].
After scanning, the output roller [7] will eject the paper to finish the job.
ARDF Paper Path
Front Side
When an original is placed on the original tray correctly, the original set sensor actuator is pushed up
and the original set sensor [A] turns off (not interrupted). The machine judges this state as the
placement of an original. When [Start] is pressed, the ARDF motor rotates the pick-up roller and the
feed roller, and the original can be fed. When [Start] is pressed while the machine has not judged that
an original was placed, scanning starts and then copying.
The image information is scanned on the sheet-through glass and the original is ejected by the
transport roller and the original exit roller.
After starting paper feeding, if the ARDF feed sensor [B] does not detect paper after this sequence, the
machine determines that an original jam has occurred.

Ricoh SP 3710DN Specifications

General

Color	No
Duplex printing	-
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	7.5 s
Print speed (black, normal quality, A4/US Letter)	32 ppm
Printer fonts	PCL, PostScript
Printing colors	Black
Maximum duty cycle	- pages per month
Page description languages	PCL 5e, PCL 6, PostScript 3
Total input capacity	300 sheets
Total output capacity	125 sheets
Maximum input capacity	550 sheets
Paper tray media weight	52 - 162 g/m²
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.72 W
Power consumption (printing)	- W
Sustainability compliance	Yes
Sustainability certificates	ENERGY STAR
Sound pressure level (printing)	- dB
Product color	Black, White
Market positioning	Home & office
USB connector	USB Type-B
USB 2.0 ports quantity	1
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Cabling technology	10/100Base-T(X)
Server operating systems supported	Windows Server 2008, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Windows operating systems supported	Windows 10, Windows 7, Windows 8.1
Included cartridge capacity (black)	7000 pages

Weight and Dimensions

Depth	392 mm
Width	370 mm
Height	262 mm
