Ricoh SP 3710DN - Paper Feed; Mechanism; Overview

7.Detailed Descriptions
223

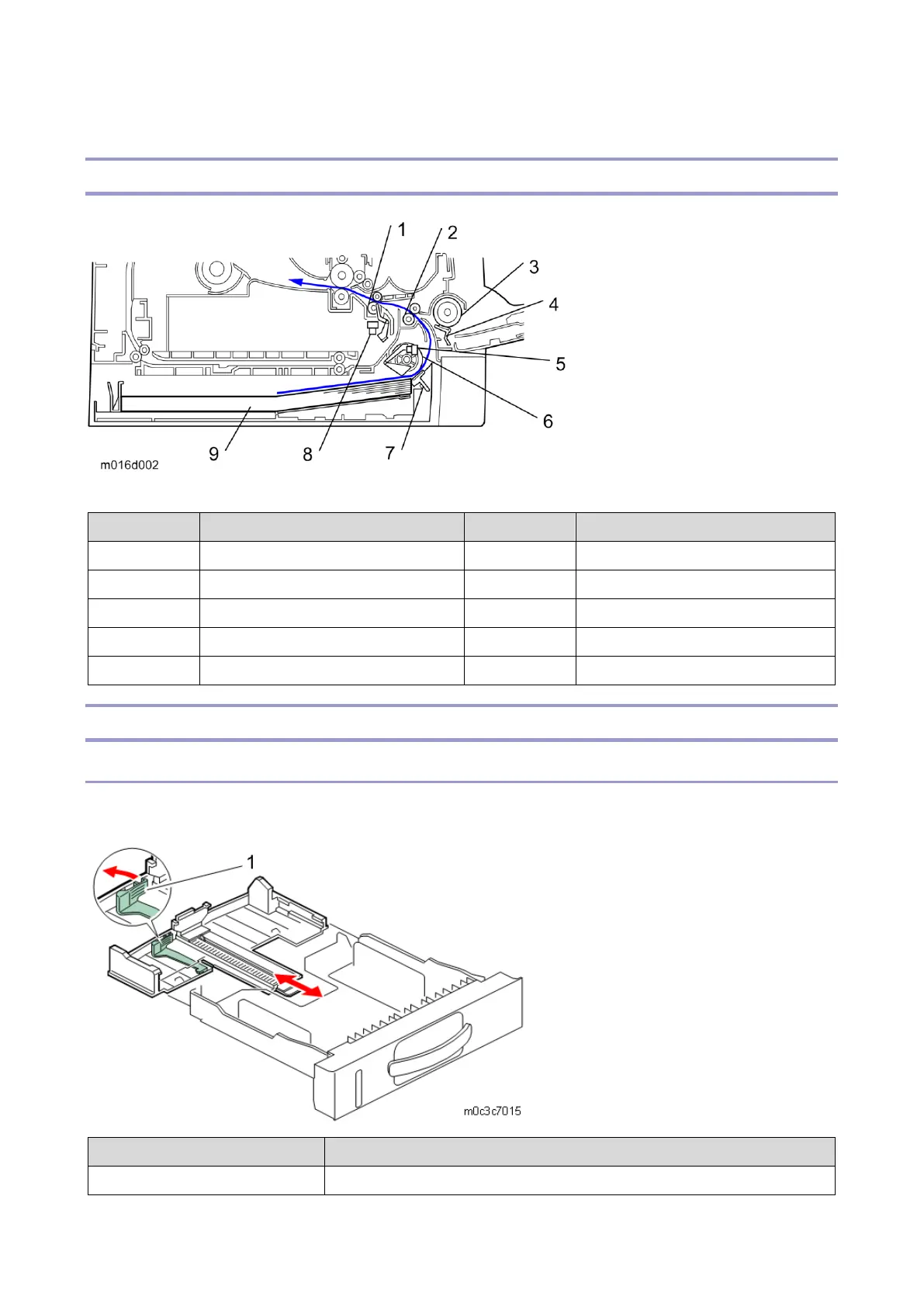

Paper Feed
Overview
Callout
Item
Callout
Item
1.
Registration roller
6.
Feed roller
2.
Relay roller
7.
Friction pad
3.
By-pass feed roller
8.
Registration sensor
4.
By-pass friction pad
9.
Paper tray
5.
Paper end sensor
Mechanism
Paper Tray
Tray Extension
No.
Item
1.
Lock lever
