4.Replacement and Adjustment
68

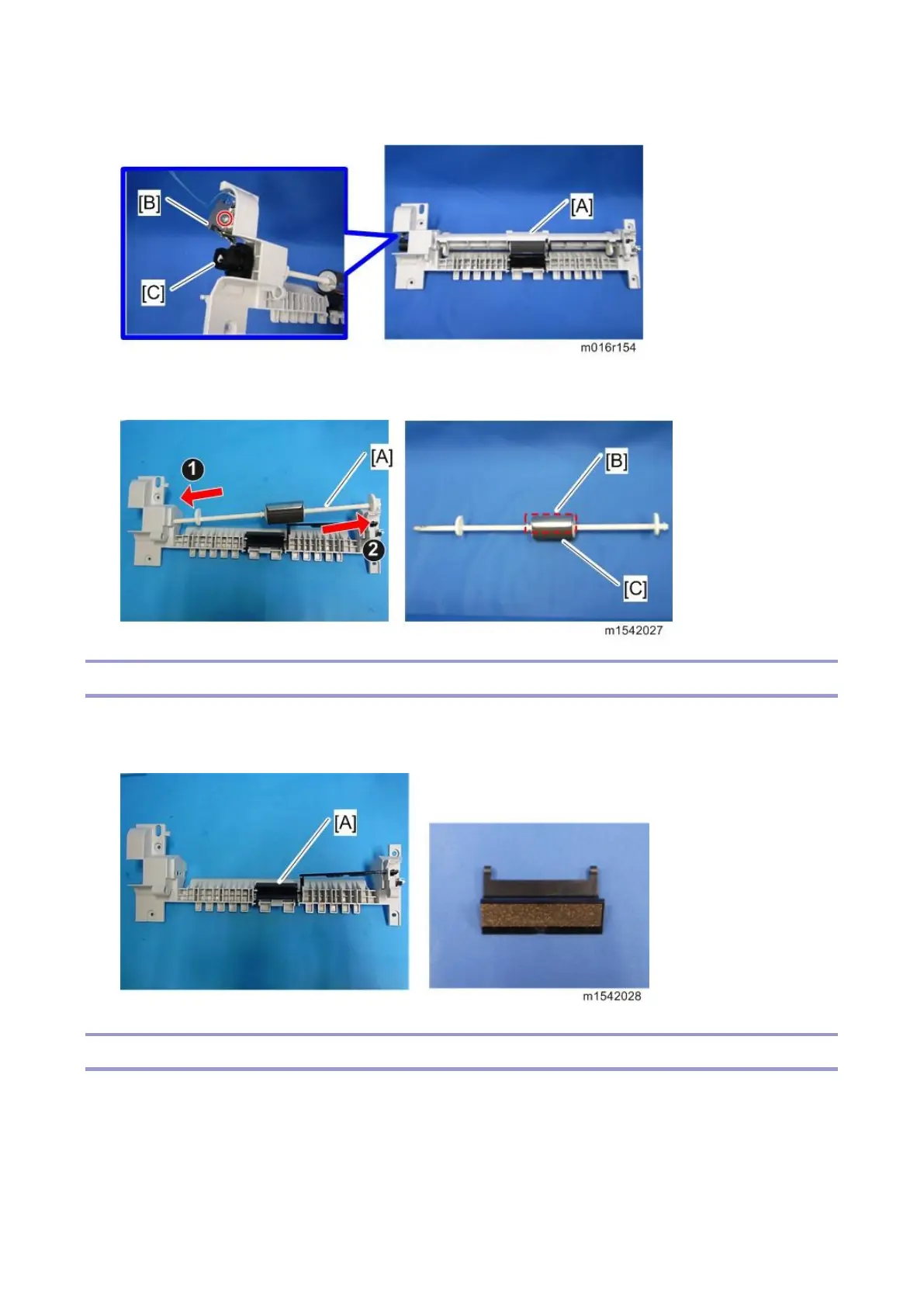

6. Remove the gear [C] (hook).
7. Slide the by-pass feed roller shaft [A] to the left side, and remove it.
8. Remove the metal cover [B] from the by-pass feed roller [C].
By-pass Feed Roller Friction Pad
1. Remove the by-pass feed roller (By-pass Feed Roller).
2. Remove the by-pass feed roller friction pad [A] (2 hooks, spring x 1).
By-pass Feed Sensor
1. Remove the right cover (Printer models: Right Cover, MF models: Right Cover).
