Ricoh SP 3710DN - Print Cartridge (AIO); Overview

7.Detailed Descriptions
218
Print Cartridge (AIO)
Overview

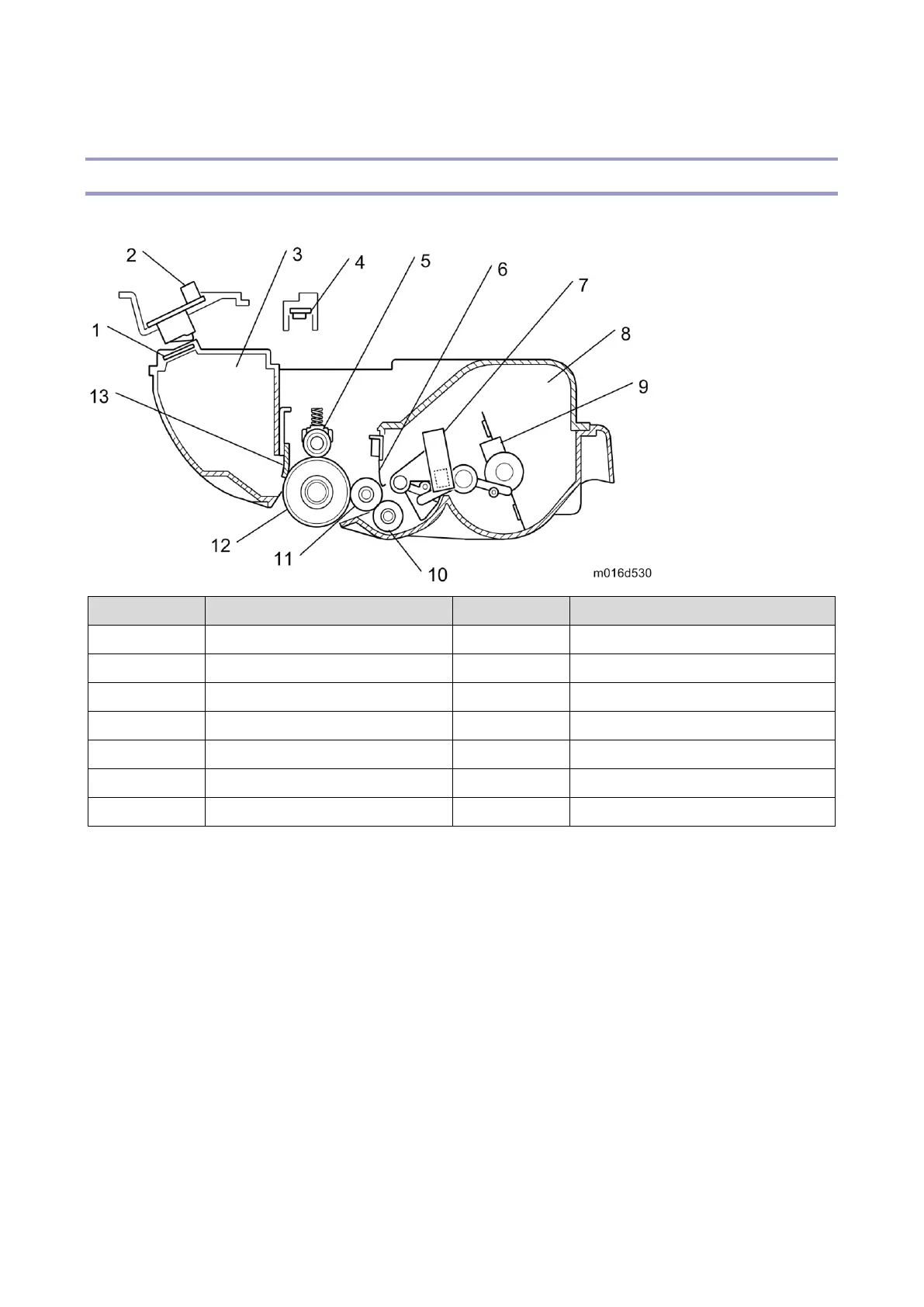

This type of cartridge is known as an “All-in One” (AIO) cartridge.
Callout
Item
Callout
Item
1.
ID Chip
8.
Toner tank
2.
ID chip PCB
9.
Agitator
3.
Waste toner tank
10.
Toner supply roller
4.
Quenching lamp
11.
Development roller
5.
Charge roller
12.
Drum
6.
Scraper
13.
Cleaning blade
7.
Toner end sensor
