4.Replacement and Adjustment
69

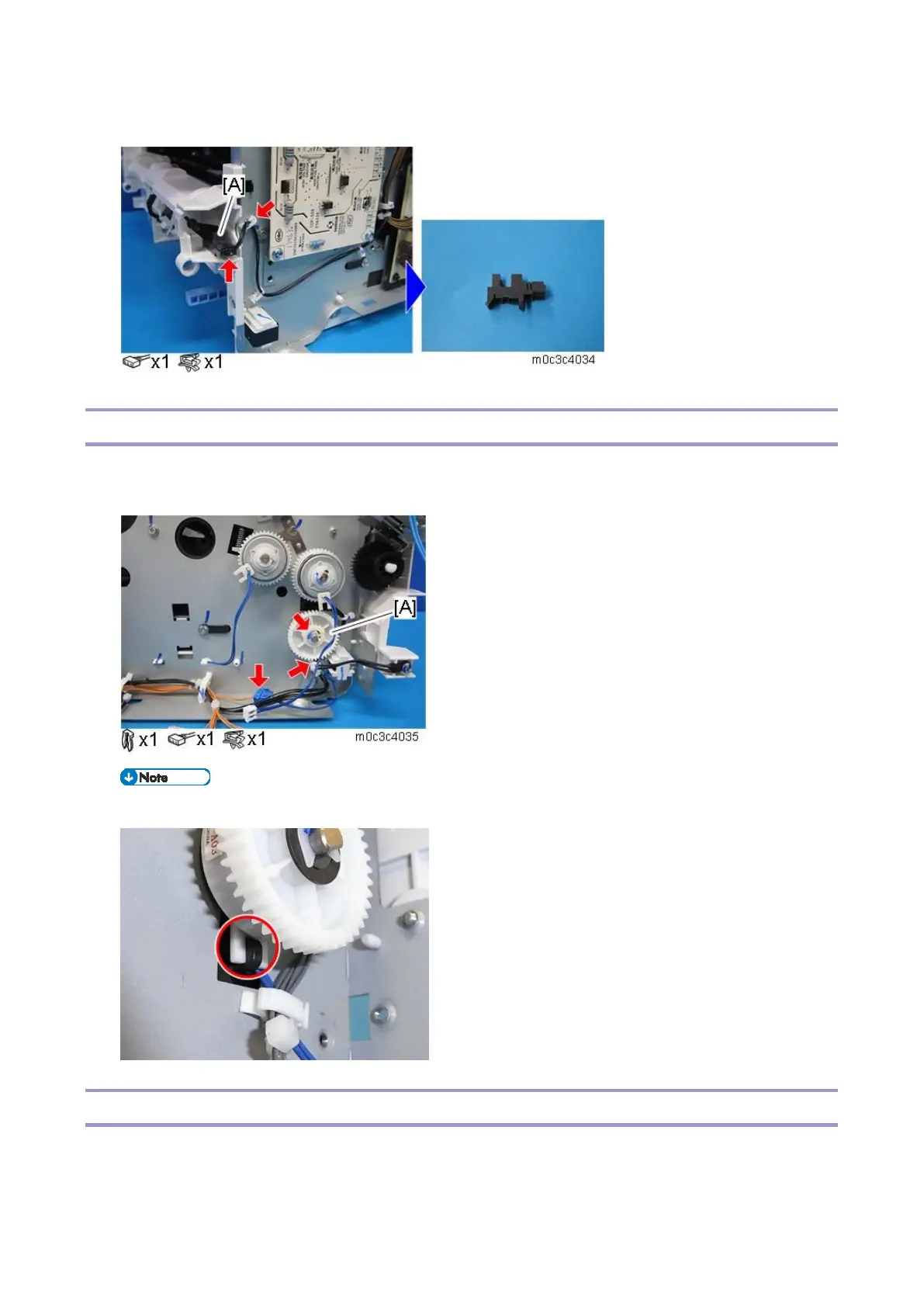

2. Remove the by-pass feed sensor [A].
Paper Feed Clutch
1. Remove the drive unit (Drive Unit).
2. Remove the paper feed clutch [A].
Fit the stopper of the paper feed clutch over the tab on the machine.
Relay Clutch
1. Remove the drive unit (Drive Unit).
To Next Page
