2.Installation
12
Admin)

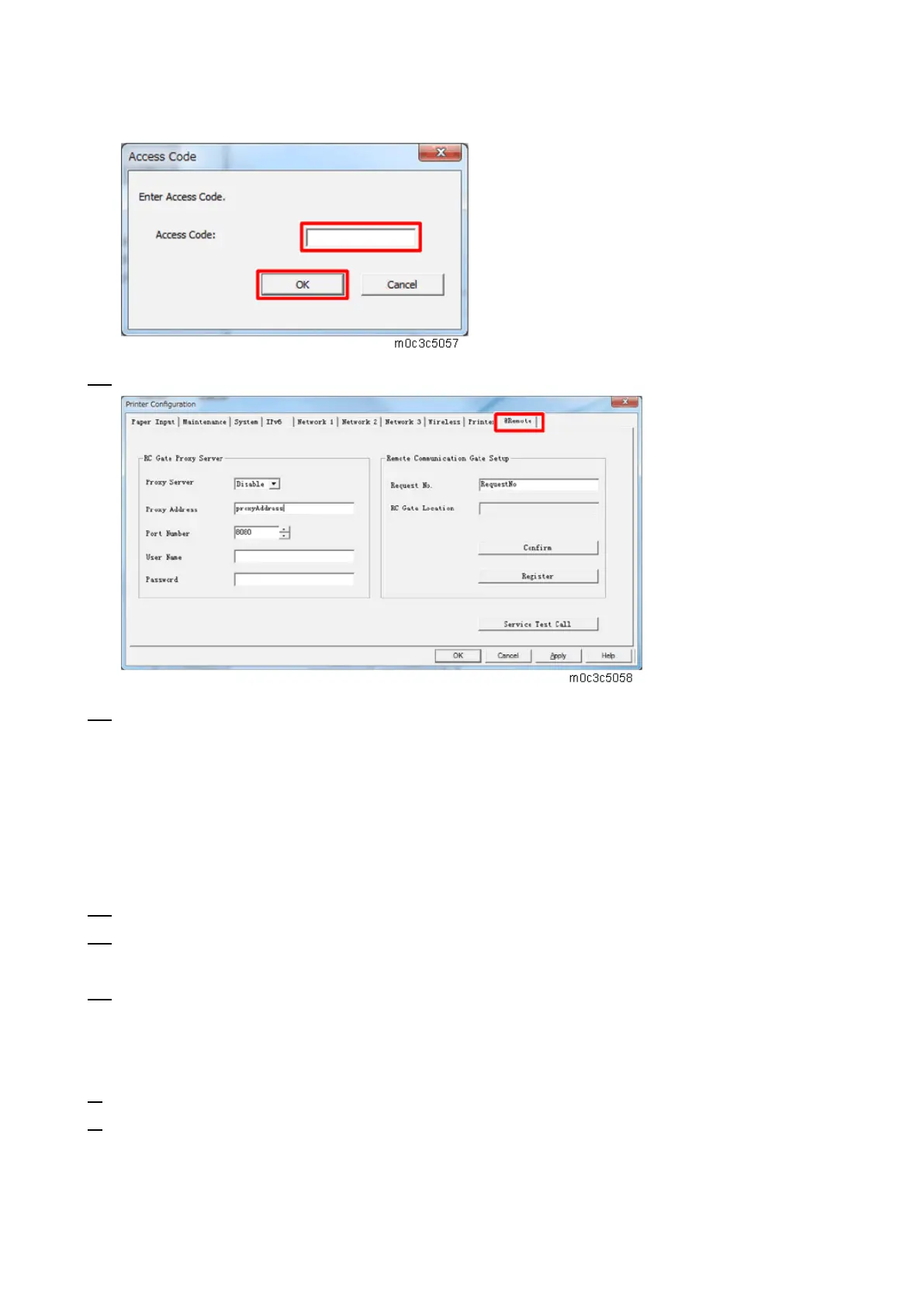

10. Select the [@Remote] tab in the printer setting screen.
11. Input the following items if necessary, then click [OK].
[RC Gate Proxy Server: Proxy Server]: Select [Enable] in the pull down menu.
[RC Gate Proxy Server: Proxy Address]: Input the address of the proxy server.
[RC Gate Proxy Server: Port Number]: Input the HTTP proxy port number.
[RC Gate Proxy Server: User Name]: Enter the HTTP proxy authentication user name.
[RC Gate Proxy Server: Password]: Enter the HTTP proxy authentication password.
[Remote Communication Gate Setup: Request No.]: Input the request No.
12. Enter the "Maintenance Mode (SP mode)".
13. Check if the function flag is "Disable (Default)".
SP menu > [@Remote] > [Remote Service] > [Function Flag]
14. Remove the USB cable from the machine, and connect to the user's LAN.
Restore the IP address of the customer engineer's PC. (When using a USB cable, skip this step.)
Execute the @Remote Settings
1. Enter the "Maintenance Mode (SP mode)".
2. Check if the @Remote status is "0".
SP menu > [@Remote] > [Remote Service] > [Instl:Condition]
If the @Remote status is not "0", ask the @Remote Center Administrator.

Table of Contents

Other manuals for Ricoh SP 3710DN

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Ricoh SP 3710DN and is the answer not in the manual?

Ricoh SP 3710DN Specifications

General IconGeneral
ColorNo
Duplex printing-
Print technologyLaser
Maximum resolution1200 x 1200 DPI
Time to first page (black, normal)7.5 s
Print speed (black, normal quality, A4/US Letter)32 ppm
Printer fontsPCL, PostScript
Printing colorsBlack
Maximum duty cycle- pages per month
Page description languagesPCL 5e, PCL 6, PostScript 3
Total input capacity300 sheets
Total output capacity125 sheets
Maximum input capacity550 sheets
Paper tray media weight52 - 162 g/m²
ISO A-series sizes (A0...A9)A4, A5, A6
ISO B-series sizes (B0...B9)B5, B6
Maximum ISO A-series paper sizeA4
AC input voltage220 - 240 V
AC input frequency50 - 60 Hz
Power consumption (standby)0.72 W
Power consumption (printing)- W
Sustainability complianceYes
Sustainability certificatesENERGY STAR
Sound pressure level (printing)- dB
Product colorBlack, White
Market positioningHome & office
USB connectorUSB Type-B
USB 2.0 ports quantity1
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Cabling technology10/100Base-T(X)
Server operating systems supportedWindows Server 2008, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Windows operating systems supportedWindows 10, Windows 7, Windows 8.1
Included cartridge capacity (black)7000 pages
Weight and Dimensions IconWeight and Dimensions
Depth392 mm
Width370 mm
Height262 mm
