4.Replacement and Adjustment
84

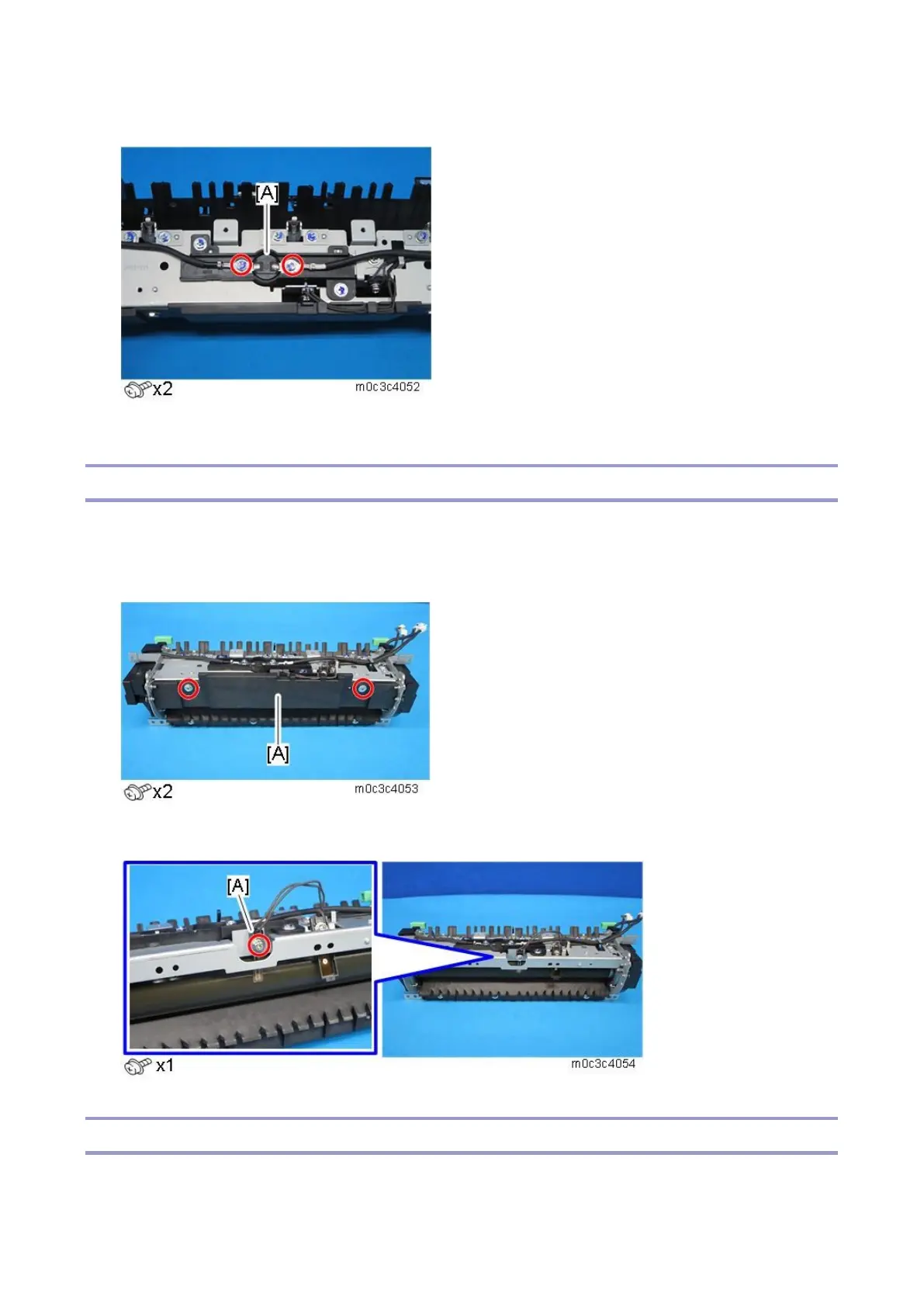

3. Remove the thermostat [A].
Fusing Thermistor
1. Remove the fusing unit (Fusing Unit).
2. Remove the fusing upper cover (Fusing Upper Cover).
3. Remove the fusing front cover [A].
4. Remove the fusing thermistor [A].
Fusing Lamp
1. Remove the fusing unit (Fusing Unit).
