4.Replacement and Adjustment
42

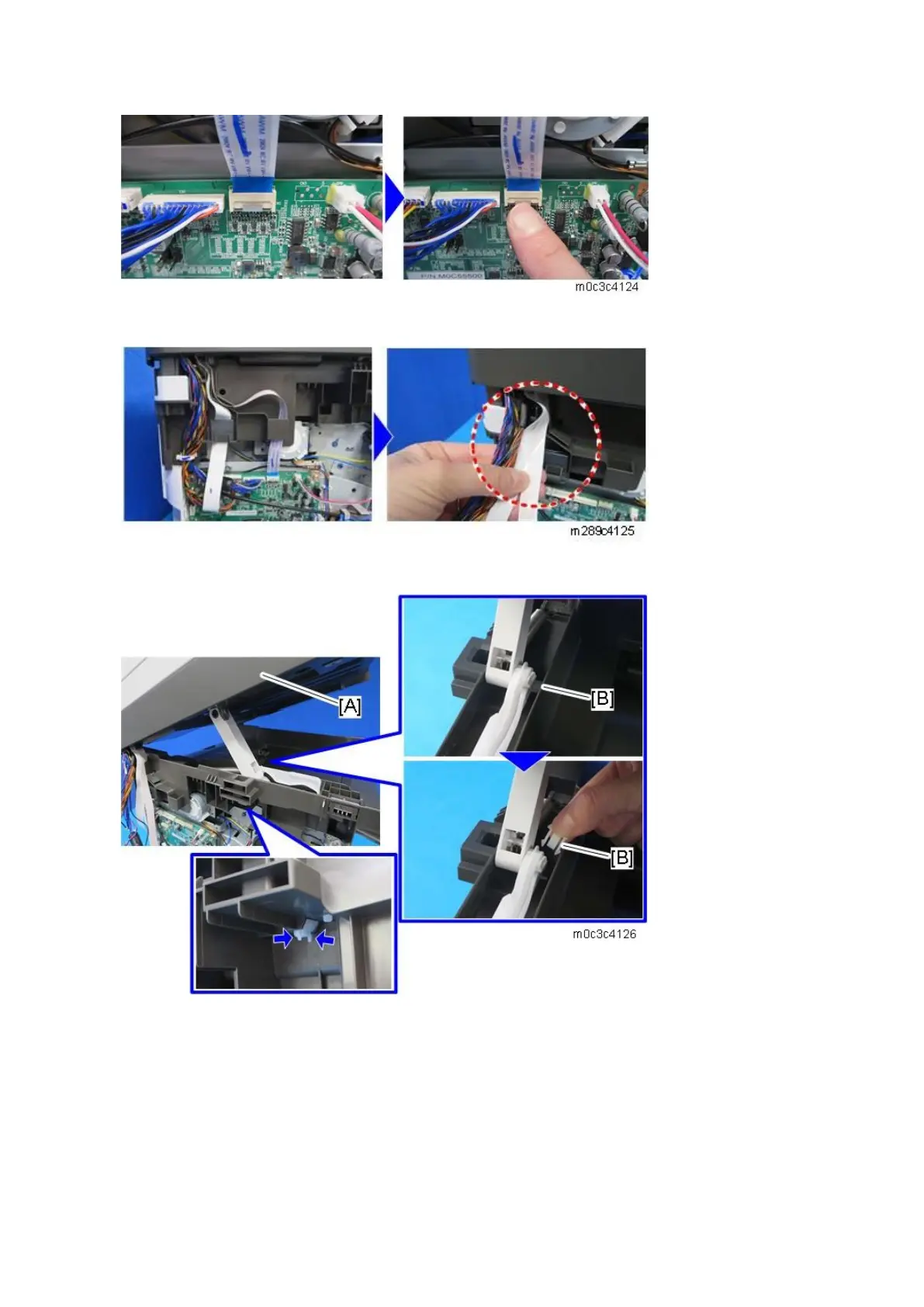

Move the harnesses out of the frame so that they do not interfere when lifting the scanner unit.
4. Open the scanner unit [A] and remove the stopper [B].
5. Remove the spring [A] and the guide plate [B], and then lift the scanner unit while in the wide-open
