4.Replacement and Adjustment
44

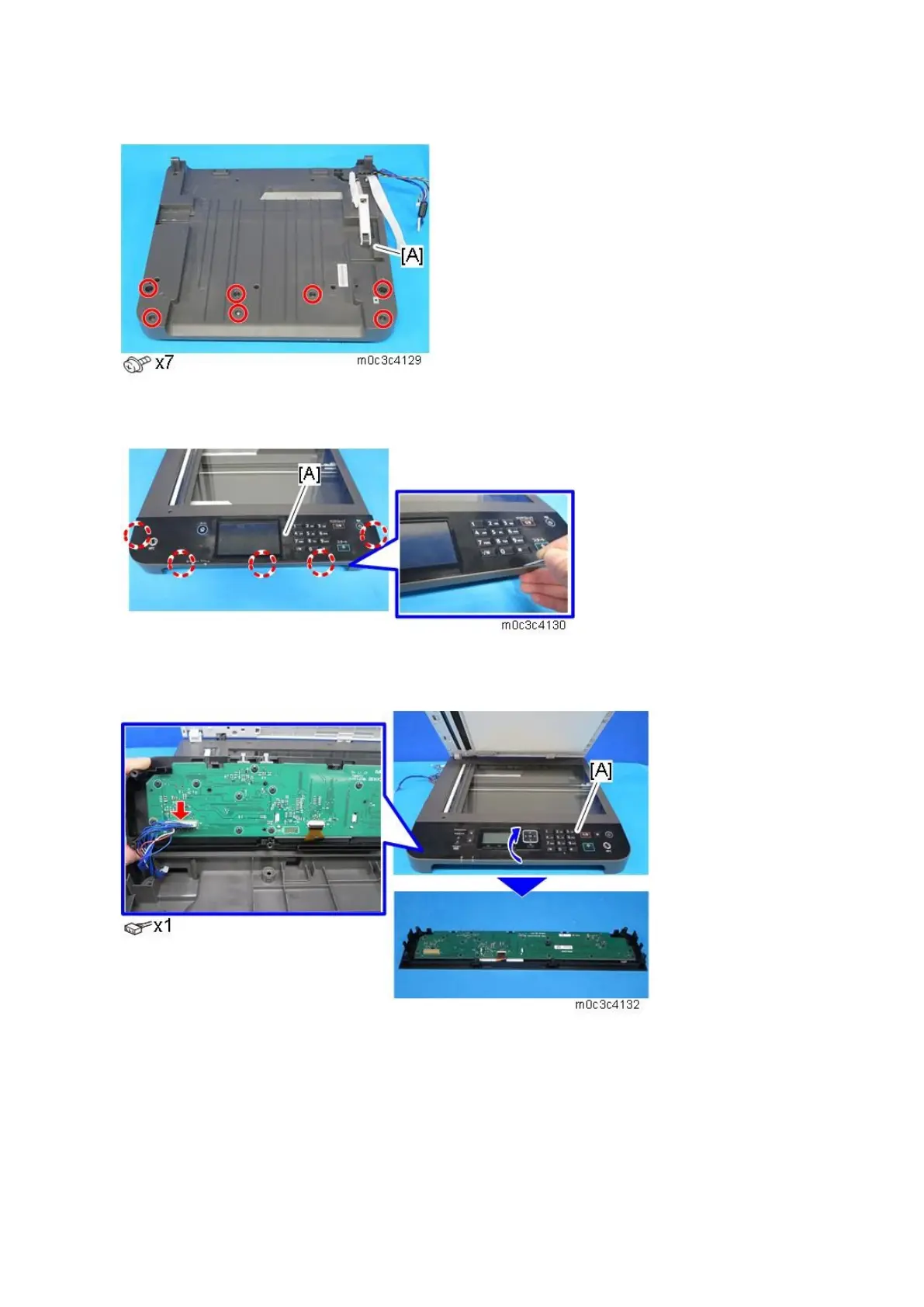

2. Turn the scanner unit [A] over, and remove the seven screws.
3. Turn the scanner unit over, and release the hooks of the operation panel [A] with a flat head
screwdriver.
4. Remove the operation panel unit [A].
Four-line LCD models:
Touch panel models:
