4.Replacement and Adjustment
73

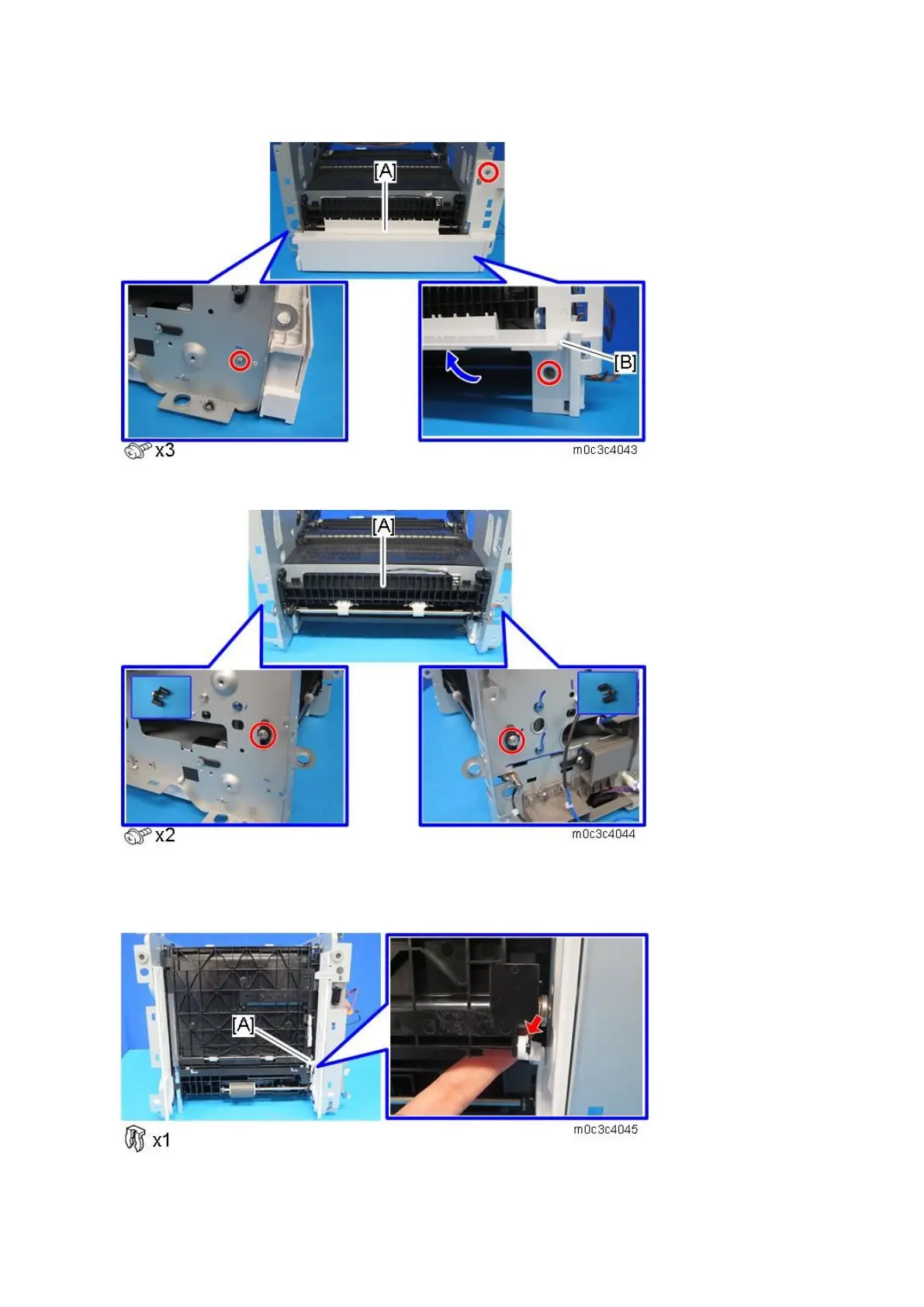

17. Remove the rear lower cover [A]. There is a screw behind the tray cover [B].
18. Remove the bushings on both sides, and remove the duplex cover [A].
19. Set the machine with the front side facing down, resting on the table.
20. Release the link [A].
To Next Page
