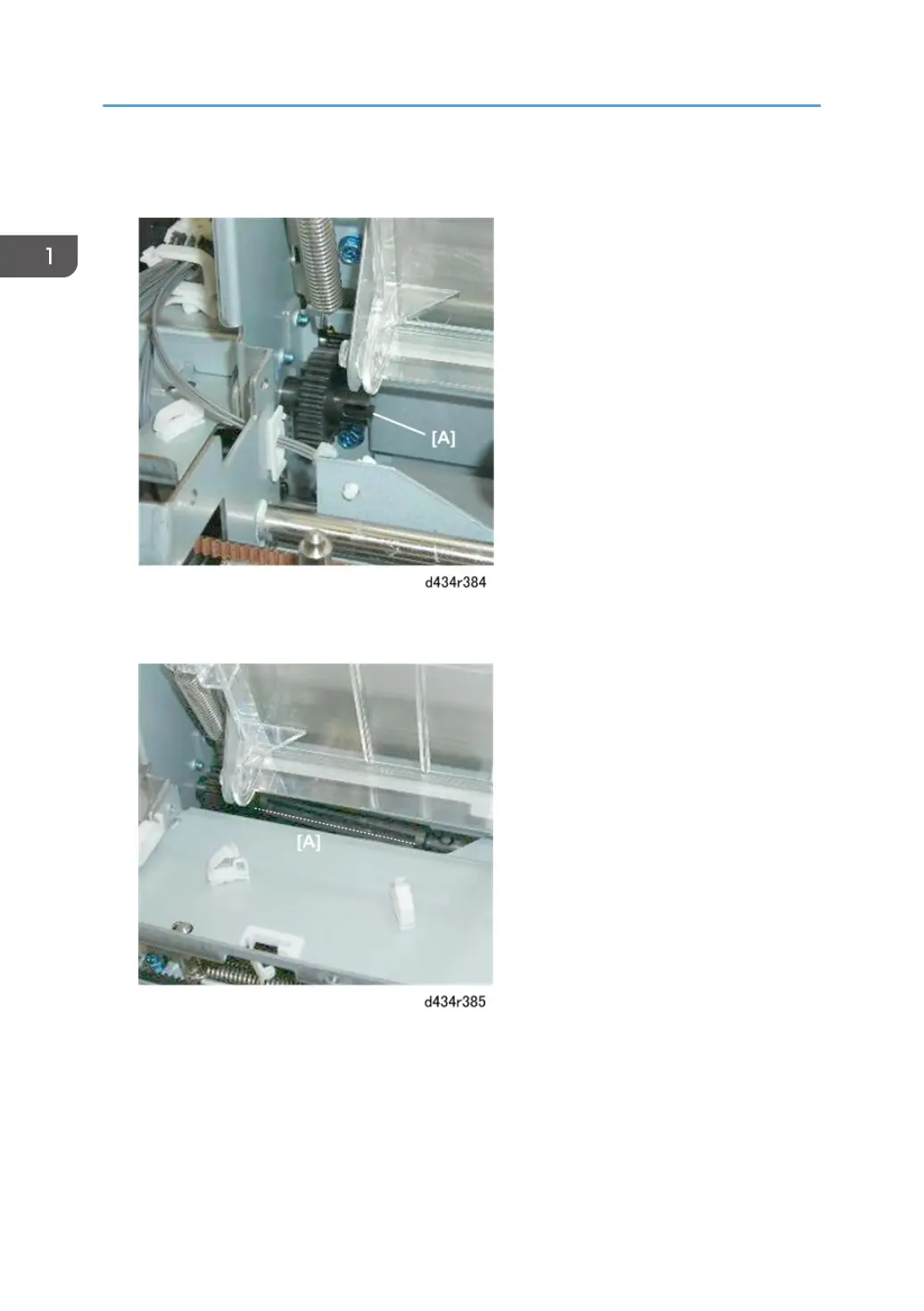

2. Turn gear [A] so that you can see the cut-out. The post of the linkage must be re-inserted here when
the motor base plate is re-installed.
3. After the motor base plate [A] has been re-installed, the linkage will not be straight. It will slant
slightly from rear to front. This is normal.
4. Confirm that the ends of the vertical shafts fit correctly through the holes in the motor base plate
before you re-attach any screws.
