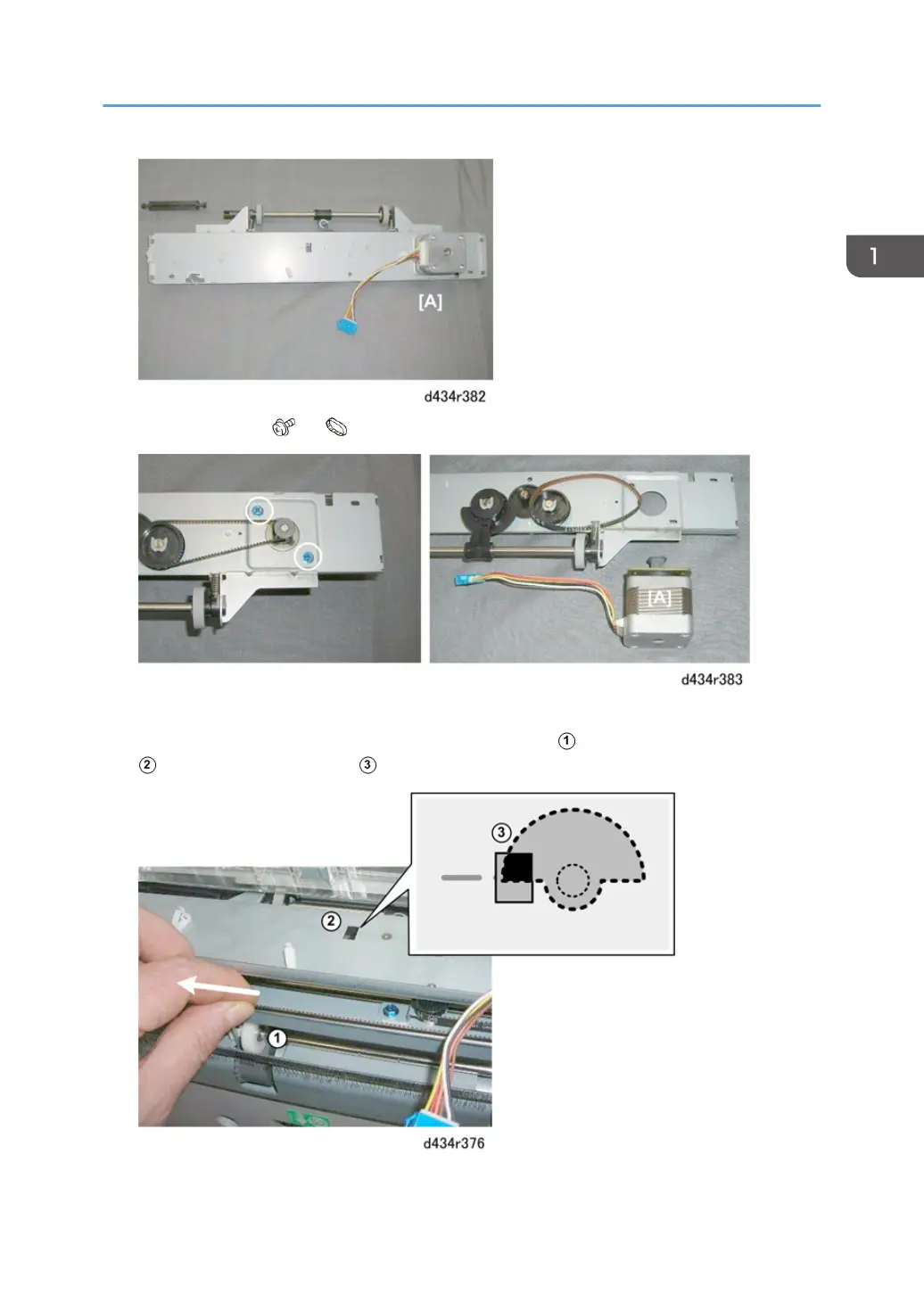

14. Remove motor [A] ( x2, x1).
Re-installation
1. To make sure there is no pressure on the base plate, pull belt until you can see through the hole
that the edge of the actuator below the hole is aligned as shown.
