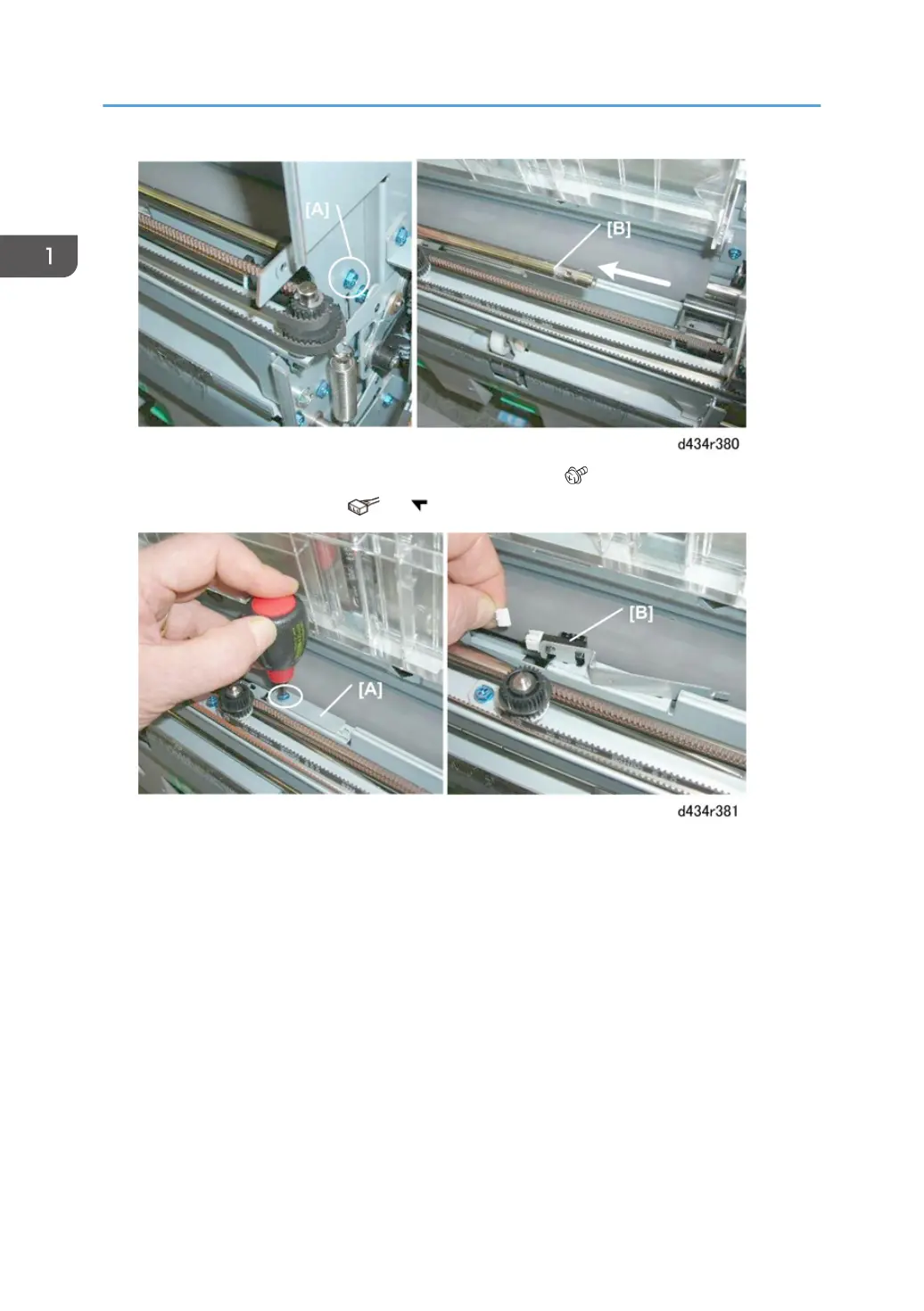

10. Use a short screwdriver to remove the exit sensor bracket [A] ( x1).
11. Disconnect the exit sensor [B] ( x1, x5).
Booklet Stapler Clamp Roller Motor
Preparation
12. Lay the motor base plate [A] on a flat surface.
13. Turn the base plate over.
1. Replacement and Adjustment
148
To Next Page
