Ricoh SR5050 - Page 148

Exit Sensor

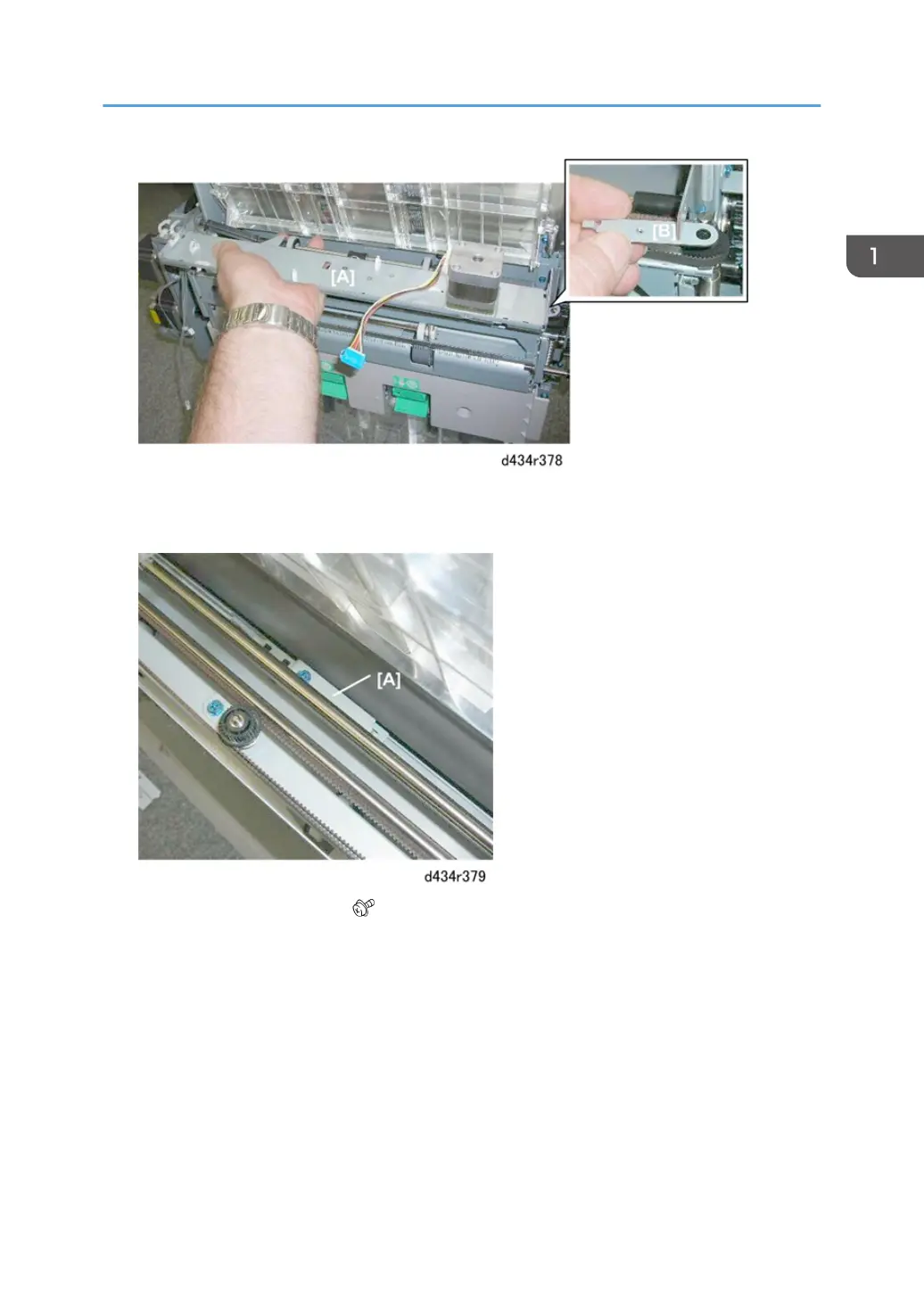

A guide shaft blocks access to the exit sensor bracket [A].
8. Remove guide shaft screw [A] ( x1).
9. Rotate then slide the guide shaft [B] to the rear until you have enough space to remove the bracket
screw. (The guide does not need to be removed.)
Booklet Unit
147
